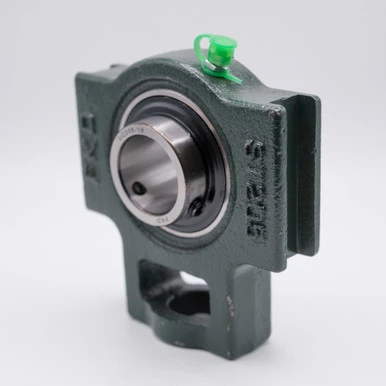

• UCST211 Take Up Flanged Mounted Bearing 55mm Bore Front View

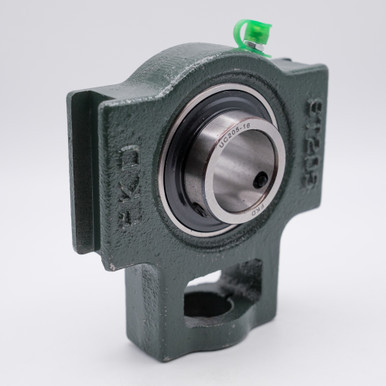

  • UCST211 Take Up Flanged Mounted Bearing 55mm Bore Back View

    • UCST211 Take Up Flanged Mounted Bearing 55mm Bore

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    UCST211
    Minimum Purchase:
    100 units
    Bore Size:
    55mm
    Slot Width:
    5-1/8" (130mm)
    Base to Center:
    4-11/64" (106mm)
    Rod End Diameter:
    1-3/8" (35mm)
    Slot Size:
    1-1/16" (27mm)
    Static Load:
    6,580 lbs
    Dynamic Load:
    9,780 lbs
    Housing Material:
    Cast Iron
    Bearing Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Interchange Numbers:
    UCST211, UCT211
    Speed Limit:
    3,100 RPM

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    UCST211 Bearing Wide Slot Take-Up Bearing Unit has a wide inner race with a set screw locking and normal duty housing. This specific bearing UCT Wide Slot Take-Up Bearing Unit allows adjustable and free mobility of the unit due to a sliding slot at the side of the housing. It is most suitable when used to the tension bearing for the belt conveyor or by placing where the shaft distance must be adjusted.

    Common usage for UCST211 Take-up Block Bearing include: Agriculture, Automotive, Construction, Pump, Manufacturing Equipment, Sporting and Consumer Goods, Conveyor and Fan Assemblies, Farm Machinery, HVAC, Feed Mill, Economical housed bearing solution and many other Industrial Equipment.

    Match#: UCST211, UCT211

    Product Videos

    Custom Field

    Bore Size 55mm
    Slot Width 5-1/8" (130mm)
    Base to Center 4-11/64" (106mm)
    Rod End Diameter 1-3/8" (35mm)
    Slot Size 1-1/16" (27mm)
    Static Load 6,580 lbs
    Dynamic Load 9,780 lbs
    Housing Material Cast Iron
    Bearing Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Interchange Numbers UCST211, UCT211
    Speed Limit 3,100 RPM
