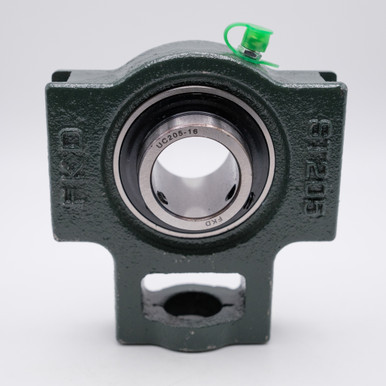

    UCST205-16 Take Up Flanged Mounted Bearing 1" Bore

    (You save )
    (No reviews yet) Write a Review
    SKU:
    UCST205-16
    Minimum Purchase:
    50 units
    Bore Size:
    1"
    Slot Width:
    2-63/64" (76mm)
    Base to Center:
    2-7/16" (62mm)
    Rod End Diameter:
    3/4" (19mm)
    Slot Size:
    17/32" (13.5mm)
    Static Load:
    1,750 lbs
    Dynamic Load:
    3,140 lbs
    Housing Material:
    Cast Iron
    Bearing Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Interchange Numbers:
    UCST205-16, UCST205-016D1
    Speed Limit:
    6,250 RPM

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

    UCST205-16 Bearing Wide Slot Take-Up Bearing Unit has a wide inner race with a set screw locking and a normal duty housing. This specific bearing UCT Wide Slot Take-Up Bearing Unit allows adjustable and free mobility of the unit due to a sliding slot at the side of the housing. It is most suitable when used to the tension bearing for the belt conveyor or by placing where the shaft distance must be adjusted.

    Common usage for UCST205-16 Take-up Block Bearing include: Agriculture, Automotive, Construction, Pump, Manufacturing Equipment, Sporting and Consumer Goods, Conveyor and Fan Assemblies, Farm Machinery, HVAC, Feed Mill, Economical housed bearing solution and many other Industrial Equipment.

    Match#: UCST205-16, UCST205-016D1

    Product Videos

    Custom Field

    Bore Size 1"
    Slot Width 2-63/64" (76mm)
    Base to Center 2-7/16" (62mm)
    Rod End Diameter 3/4" (19mm)
    Slot Size 17/32" (13.5mm)
    Static Load 1,750 lbs
    Dynamic Load 3,140 lbs
    Housing Material Cast Iron
    Bearing Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Interchange Numbers UCST205-16, UCST205-016D1
    Speed Limit 6,250 RPM
