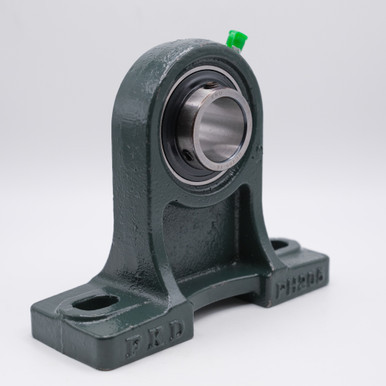

• UCPH206-19 Pedestal Pillow Block Bearing Angled View
  • UCPH206-19 Pedestal Pillow Block Bearing Angled View

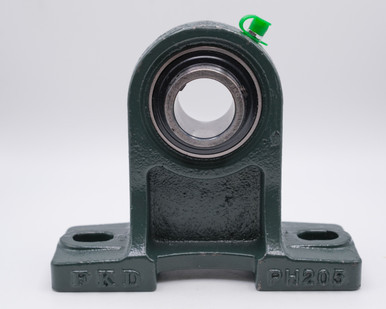

  • UCPH206-19 Pedestal Pillow Block Bearing Front View

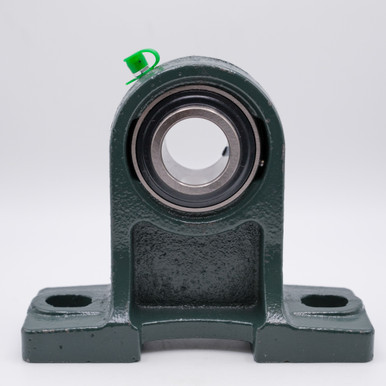

  • UCPH206-19 Pedestal Pillow Block Bearing Back View
  • UCPH206-19 Pedestal Pillow Block Bearing Angled View
  • UCPH206-19 Pedestal Pillow Block Bearing Top View

    • UCPH206-19 Pedestal Pillow Block Bearing Shaft Size 1-3/16

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    UCPH206-19
    Minimum Purchase:
    100 units
    Inner Diameter:
    1-3/16"
    Overall Height:
    5-1/8"
    Overall Length:
    6-1/2"
    Bolt Hole to Bolt Hole:
    4-3/4"
    Base to Center:
    3-35/64"
    Housing Material:
    Cast Iron
    Insert Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    2,570 lbf
    Dynamic Load:
    4,377 lbf
    Speed Limit:
    5,300 RPM
    Country of Origin:
    China
    Interchange Numbers:
    UCPH206-19S, EWPH206-19S, UCHP206-103T, UELHP206-103T

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    UCPH206-19 Pedestal Pillow Block Bearing

    Key Features

    UCPH206-19 is a Pedestal High Center Height Pillow Block Bearing Unit with a Set Screw Insert Ball Bearing. This Unit features a combination of a Cast Iron housing and a Chrome Steel Set Screw Insert Ball Bearing with two set screws that can be tightened onto a shaft. The set screw placement is at a 90 degree angle to optimize balance between holding power and inner ring distortion. UCPH206-19 has also been equipped with a grease feed, allowing for re-lubrication of the bearing if necessary. Our UCPH200 Series has been pre-lubricated with Grease, allowing for immediate use upon delivery, and is well suited for reversing applications and normal loads.

    Applications / Industries

    UCPH206-19 Tapped Base Pillow Block Bearings are used in a variety of applications including Agriculture, Automotive, Construction, Pump, Manufacturing Equipment, Sporting and Consumer Goods, Conveyor and Fan Assemblies, Farm Machinery, HVAC, Feed Mills, among other Industrial Equipment.

    Product Videos

    Custom Field

    Inner Diameter 1-3/16"
    Overall Height 5-1/8"
    Overall Length 6-1/2"
    Bolt Hole to Bolt Hole 4-3/4"
    Base to Center 3-35/64"
    Housing Material Cast Iron
    Insert Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 2,570 lbf
    Dynamic Load 4,377 lbf
    Speed Limit 5,300 RPM
    Country of Origin China
    Interchange Numbers UCPH206-19S, EWPH206-19S, UCHP206-103T, UELHP206-103T
