Pillow Block Bearings

UCPH201-8 Pedestal Pillow Block Bearing Shaft Size 1/2

SKU: UCPH201-8
  • Free shipping on most orders
  • Ships from Glendale, CA

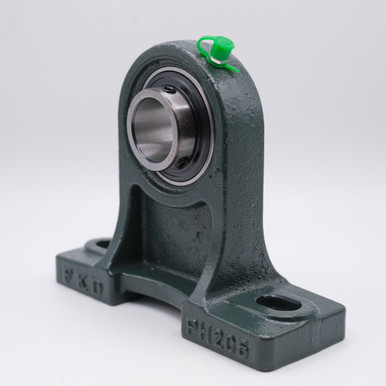

  • UCPH201-8 Pedestal Pillow Block Bearing Angled View
  • UCPH201-8 Pedestal Pillow Block Bearing Angled View

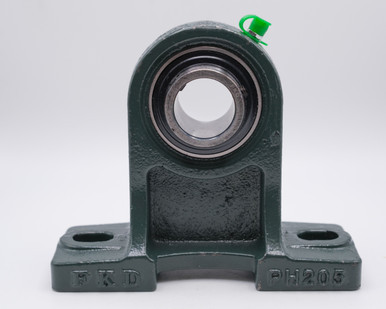

  • UCPH201-8 Pedestal Pillow Block Bearing Front View
  • UCPH201-8 Pedestal Pillow Block Bearing Back View
  • UCPH201-8 Pedestal Pillow Block Bearing Angled View
  • UCPH201-8 Pedestal Pillow Block Bearing Top View

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)1/2"
    Overall Length5"
    Overall Height3-31/32"
    Base to center height2-3/4"
    Bolt-hole spacing3-3/4"

    Construction

    Bearing MaterialChrome Steel SAE-52100
    Housing MaterialCast Iron
    LubricationChevron SRI-2 Grease
    Country of OriginChina

    Performance

    Static Load1,495 lbs
    Dynamic Load2,882 lbs
    Speed Limit8,800 RPM

    Interchange numbers 2

    • UCPH201-8S
    • UCHP201-008D1
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    UCPH201-8 Pedestal Pillow Block Bearing

    Key Features

    UCPH201-8 is a Pedestal High Center Height Pillow Block Bearing Unit with a Set Screw Insert Ball Bearing. This Unit features a combination of a Cast Iron housing and a Chrome Steel Set Screw Insert Ball Bearing with two set screws that can be tightened onto a shaft. The set screw placement is at a 90 degree angle to optimize balance between holding power and inner ring distortion. UCPH201-8 has also been equipped with a grease feed, allowing for re-lubrication of the bearing if necessary. Our UCPH200 Series has been pre-lubricated with grease, allowing for immediate use upon delivery, and is well suited for reversing applications and normal loads.

    Applications / Industries

    Common usage for UCPH201-8 Tapped Base Pillow Block Bearing include: Agriculture, Automotive, Construction, Pump, Manufacturing Equipment, Sporting and Consumer Goods, Conveyor and Fan Assemblies, Farm Machinery, HVAC, Feed Mills, among other Industrial Equipment.
