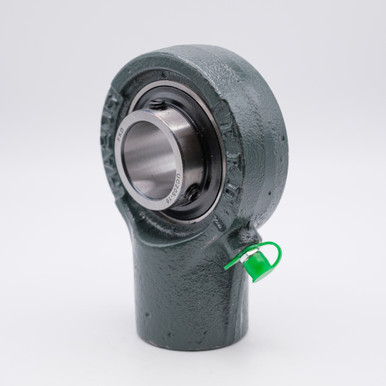

• UCHA202 Conveyor Hanger Unit 15mm Shaft Angled View
  • UCHA202 Conveyor Hanger Unit 15mm Shaft Angled View
  • UCHA202 Conveyor Hanger Unit 15mm Shaft Front View

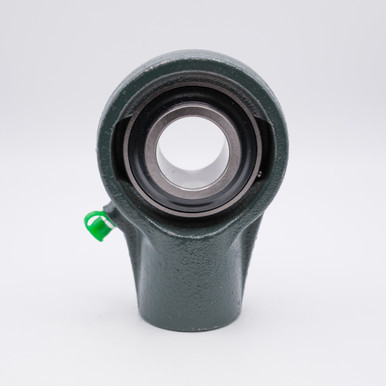

  • UCHA202 Conveyor Hanger Unit 15mm Shaft Back View

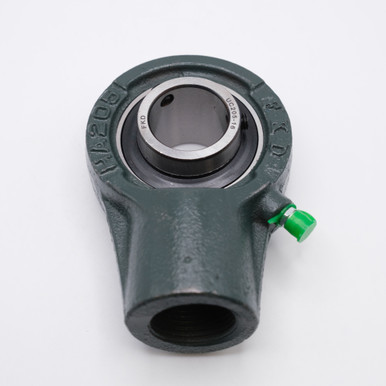

  • UCHA202 Conveyor Hanger Unit 15mm Shaft Flat View
  • UCHA202 Conveyor Hanger Unit 15mm Shaft Flat View

    • UCHA202 Conveyor Hanger Unit Mounted Bearing 15mm Bore

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    UCHA202
    Minimum Purchase:
    100 units
    Bore Size:
    15mm
    Base to Center:
    2-33/64" (64mm)
    Static Load:
    2,500 lbs
    Dynamic Load:
    2,900 lbs
    Housing Material:
    Cast Iron
    Bearing Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Speed Limit:
    8,800 RPM

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    UCHA202 Conveyor Hanger Unit with Set Screw Ball Bearing, Pre-lubricated with Grease

    UCHA202 conveyor hanger unit bearing has a cast iron flange housing with a set screw. This ready-to-mount unit has a cast iron housing, chrome steel bearings, and is designed for efficient operation at a wide range of speeds. The unit is secured to the shaft with set screws to prevent slippage. These bearings are most commonly used in mechanical equipment where moderate loads and shaft speeds are involved where the shaft and mounting surface are perpendicular to each other.

    Product Videos

    Custom Field

    Bore Size 15mm
    Base to Center 2-33/64" (64mm)
    Static Load 2,500 lbs
    Dynamic Load 2,900 lbs
    Housing Material Cast Iron
    Bearing Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Speed Limit 8,800 RPM
