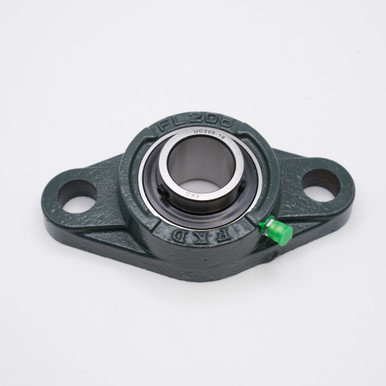

• UCFL206-2 Bore 2-Bolt Flange Bearing 1-1/4" Bore Top View

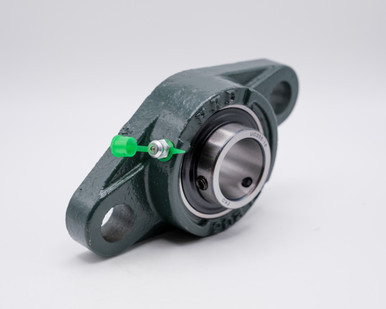

  • UCFL206-2 Bore 2-Bolt Flange Bearing 1-1/4" Bore Right Side View

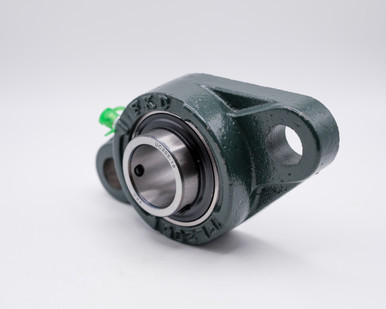

  • UCFL206-2 Bore 2-Bolt Flange Bearing 1-1/4" Bore Left Side View

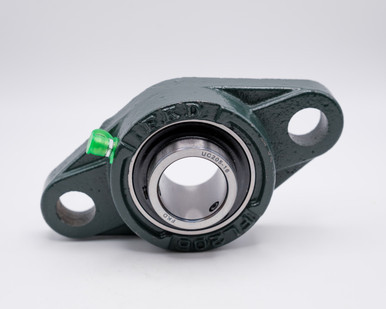

  • UCFL206-2 Bore 2-Bolt Flange Bearing 1-1/4" Bore Front View

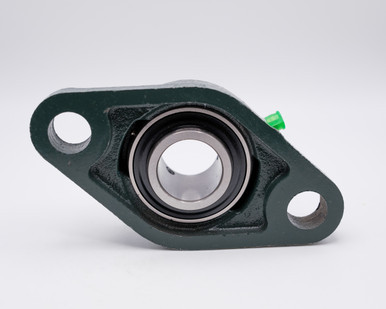

  • UCFL206-2 Bore 2-Bolt Flange Bearing 1-1/4" Bore Bottom View

    • UCFL206-20 Two Bolt Flanged Mounted Bearing 1-1/4" Bore

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    UCFL206-20
    Minimum Purchase:
    100 units
    Bore Size:
    1-1/4"
    Bolt Hole to Bolt Hole:
    4-39/64" (117mm)
    Static Load:
    2,569 lbs
    Dynamic Load:
    4,377 lbs
    Housing Material:
    Cast Iron
    Bearing Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Interchange Numbers:
    UCFT206-20, UCFL206-104D1, SFT-20R, 123172, F2B-SC-104S, FX3-U2E20N, VF2S-220S, YCJT-1 1/4S
    Speed Limit:
    5,300 RPM

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    UCFL206-20 2-Bolt Flange Bearing has a wide inner ring with two set screws that are for attachments to the shaft. This specific bearing UCFL206-20 with 2-Bolt Flange Bearing has a combination of a chrome steel set screw insert bearing and a oval cast iron 2-Bolt Flange housing. The UCFL200 Series are equipped with insert ball bearing which has two grub screws to allow tightening against the shaft once fitted in place.

    Common usage for UCFL200 Series 2-Bolt Flange Ball Bearing Units are; Agricultural, Automotive, Construction, Sporting and Consumer Goods, Pump, Manufacturing Equipment, Fan Assemblies, Farm Machinery, Conveyor, Feed Mill, Economical Housed Bearing, and many other Industrial Equipment.

    Match #: UCFT206-20, UCFL206-104D1, SFT-20R, 123172, F2B-SC-104S, FX3-U2E20N, VF2S-220S, YCJT-1 1/4S



    Product Videos

    Custom Field

    Bore Size 1-1/4"
    Bolt Hole to Bolt Hole 4-39/64" (117mm)
    Static Load 2,569 lbs
    Dynamic Load 4,377 lbs
    Housing Material Cast Iron
    Bearing Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Interchange Numbers UCFT206-20, UCFL206-104D1, SFT-20R, 123172, F2B-SC-104S, FX3-U2E20N, VF2S-220S, YCJT-1 1/4S
    Speed Limit 5,300 RPM
