Product Description

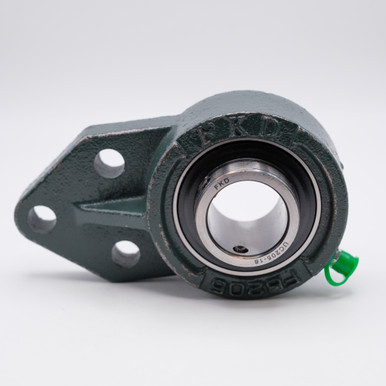

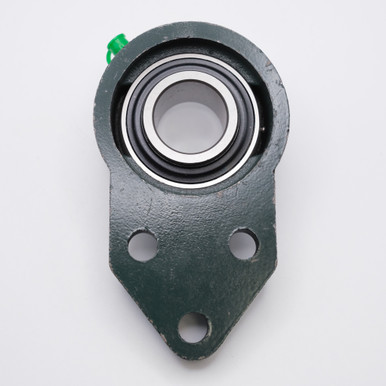

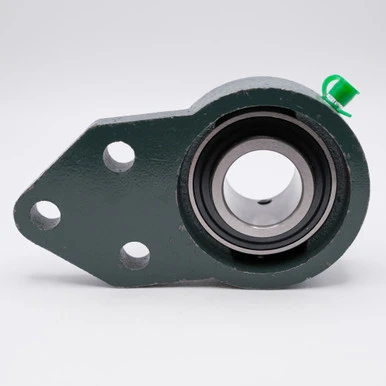

UCFB 3-Bolt Flange Bearing Unit has a combination of a cast iron 3-bolt bracket flange unit and a set screw locking insert bearing. This specific 3-Bolt Flange Bearing Unit has a shape of a chevron flange which has a special configuration on conveyors. The ball bearings have a wide inner ring with two set screws for the attachment of the shaft.
Common usage for UCFB200 Series 3-Bolt Flange Bearing includes the following: Agricultural, Automotive, Construction, Sporting and Consumer Goods, Pump, Manufacturing Equipment, Fan Assembles, Farm Machinery, Conveyor, Feed Mill, Economical Housed Bearing, and many other Industrial Equipments.
Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations; mounted bearings can be one or two pieces. They can have an extended inner ring and locking device and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block) and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.
Match #: UCFB204-D012, VFB-012, FB-SC-012, UCFB204-12, FB3-U212N, MFB-3/4, FB-12, UCFB-204-12D, 124437, UCFH204-012D1
