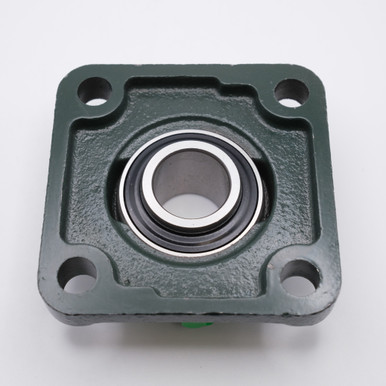

  • UCF211-35 Four Bolt Flanged Mounted Bearing 2-3/16" Bore Front View

    • UCF211-35 Four Bolt Flanged Mounted Bearing 2-3/16" Bore

    Write a Review
    SKU:
    UCF211-35
    Minimum Purchase:
    50 units
    Bore Size:
    2-3/16"
    Bolt Hole to Bolt Hole:
    5-1/8" (130mm)
    Static Load:
    6,607 lbs
    Dynamic Load:
    9,743 lbs
    Housing Material:
    Cast Iron
    Bearing Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Interchange Numbers:
    UGLF211-35, FB250x2-3/16, VF4S-235, F4B-SC-203, RCJC-2-3/16, YCJ-2.3/16, F3-U235N, UCF211-35, UCF211-203T, FHSFJ211-35G, SF-2-3/16, SF-2-3/16, FY-2-3/16TM
    Speed Limit:
    3,100 RPM

    Product Description

    UCF211-35 bearing is 4-Bolt Flange Bearing containing a wide inner ring with two set screws for the attachment of the shaft. This 4-Bolt Flange Bearing has a combination of set screw chrome steel inserts with a slinger seal design and a unique cast iron 4-Bolt Flange housing with an anti-rotation device.

    The UCF200 Series 4-Bolt Flange Bearing is mainly applied on the occasion that the side which is vertical to the axis is fixed by 4 bolts. Its fixed mode is the same with UCF211-35 Pillow Block Bearing and widely used in machinery.

    This flange bearing is commonly used for HVAC, Coveying, Processing, Feed Mill, Agricultural and many other Industrial Applications.

    Match #:  UGLF211-35, FB250x2-3/16, VF4S-235, F4B-SC-203, RCJC-2-3/16, YCJ-2.3/16, F3-U235N, UCF211-35, UCF211-203T, FHSFJ211-35G, SF-2-3/16, SF-2-3/16, FY-2-3/16TM

    Product Videos

    Custom Field

    Bore Size 2-3/16"
    Bolt Hole to Bolt Hole 5-1/8" (130mm)
    Static Load 6,607 lbs
    Dynamic Load 9,743 lbs
    Housing Material Cast Iron
    Bearing Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Interchange Numbers UGLF211-35, FB250x2-3/16, VF4S-235, F4B-SC-203, RCJC-2-3/16, YCJ-2.3/16, F3-U235N, UCF211-35, UCF211-203T, FHSFJ211-35G, SF-2-3/16, SF-2-3/16, FY-2-3/16TM
    Speed Limit 3,100 RPM
