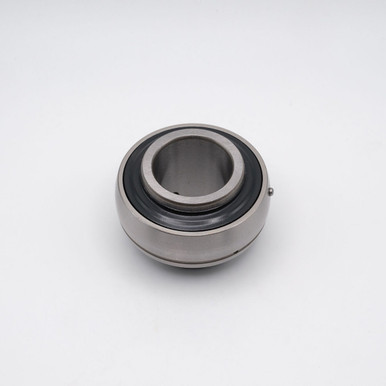

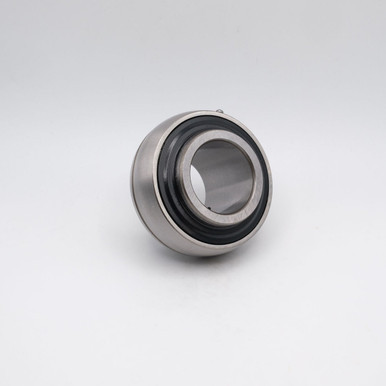

  • UC215-48 Insert Ball Bearing 3x130x77.8
  • UC215-48 Insert Ball Bearing 3x130x77.8 Side View
  • UC215-48 Insert Ball Bearing 3x130x77.8 Front View
  • UC215-48 Insert Ball Bearing 3x130x77.8 Side View UC215-48 Insert Ball Bearing 3x130x77.8 Front View

    UC215-48 Insert Ball Bearing 3x130x77.8

    (You save )
    (No reviews yet) Write a Review
    SKU:
    UC215-48
    Minimum Purchase:
    100 units
    Inner Diameter:
    3"
    Outer Diameter:
    130mm
    Inner Race Width:
    30mm
    Overall Race Width:
    77.8mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    10,075 lbs
    Dynamic Load:
    13,956 lbs
    Speed Limit:
    2,300 RPM
    Interchange Numbers:
    UC215-48S

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

    Insert Set Screw Ball Bearing With Lubricating Groove Access, Sealed & Pre-Lubricated, Spherical Outer to Insert in Housing

    UC200 Insert Bearing Series has a set screw locking and is held in position on the shaft by two set screws which are directly on the extended end of the inner ring. Insert Bearing is self-aligning for standard load capacity. This specific arrangement is suitable for application as where the direction of rotation is alternative.

    The UC200 Series Insert Bearing are widely used as replacement bearings for Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4 Bolt Flanges, Take-Up Units, and many more. It can be costly to replace the whole unit however, buying just the replacement for the insert bearing can save you from over spending.

    Match #: UC215-48S

    Product Videos

    Custom Field

    Inner Diameter 3"
    Outer Diameter 130mm
    Inner Race Width 30mm
    Overall Race Width 77.8mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Static Load 10,075 lbs
    Dynamic Load 13,956 lbs
    Speed Limit 2,300 RPM
    Interchange Numbers UC215-48S
