  • UC210 Insert Ball Bearing 50x90x51.6

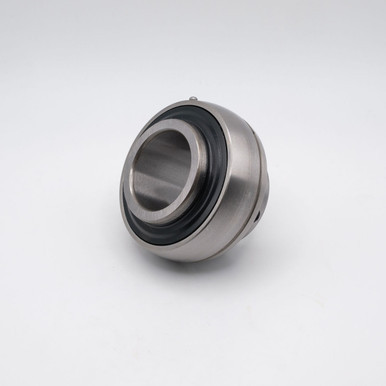

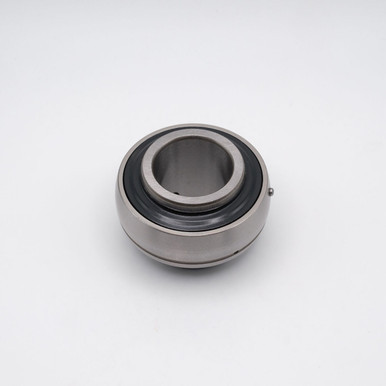

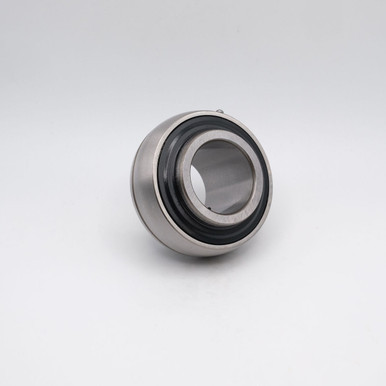

  • UC210 Insert Ball Bearing 50x90x51.6 Side View

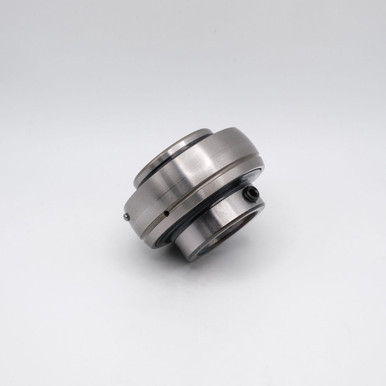

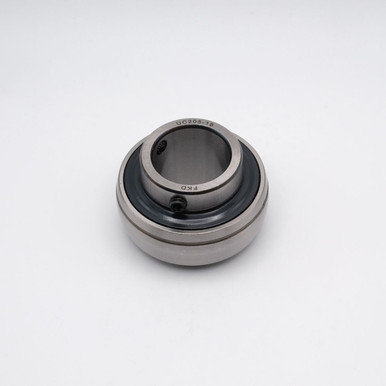

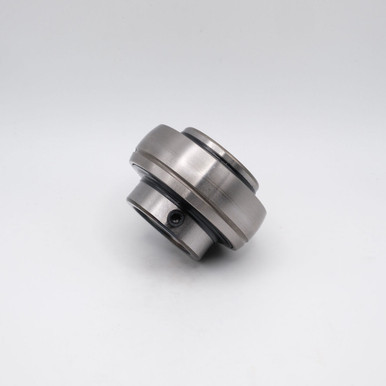

  • UC210 Insert Ball Bearing 50x90x51.6 Front View
  • UC210 Insert Ball Bearing 50x90x51.6 Side View UC210 Insert Ball Bearing 50x90x51.6 Front View

    UC210 Insert Ball Bearing 50x90x51.6

    (You save )
    (No reviews yet) Write a Review
    SKU:
    UC210
    Minimum Purchase:
    100 units
    Inner Diameter:
    50mm
    Outer Diameter:
    90mm
    Inner Race Width:
    24mm
    Overall Race Width:
    51.6mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    5,328 lbs
    Dynamic Load:
    7,866 lbs
    Speed Limit:
    3,400 RPM
    Interchange Numbers:
    UC210-50MM

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

    Insert Set Screw Ball Bearing With Lubricating Groove Access, Sealed & Pre-Lubricated, Spherical Outer to Insert in Housing

    UC200 Insert Bearing Series has a set screw locking and is held in position on the shaft by two set screws which are directly on the extended end of the inner ring. Insert Bearing is self-aligning for standard load capacity. This specific arrangement is suitable for application as where the direction of rotation is alternative.

    The UC200 Series Insert Bearing are widely used as replacement bearings for Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4 Bolt Flanges, Take-Up Units, and many more. It can be costly to replace the whole unit however, buying just the replacement for the insert bearing can save you from over spending.

    Match #: UC210-50MM


    Product Videos

    Custom Field

    Inner Diameter 50mm
    Outer Diameter 90mm
    Inner Race Width 24mm
    Overall Race Width 51.6mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Static Load 5,328 lbs
    Dynamic Load 7,866 lbs
    Speed Limit 3,400 RPM
    Interchange Numbers UC210-50MM
