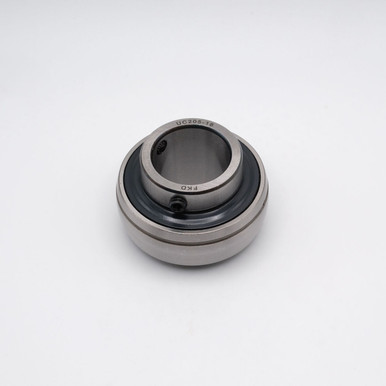

  • UC206 Insert Ball Bearing 30x62x38.1
  • UC206 Insert Ball Bearing 30x62x38.1 Side View
  • UC206 Insert Ball Bearing 30x62x38.1 Front View
  • UC206 Insert Ball Bearing 30x62x38.1 Side View UC206 Insert Ball Bearing 30x62x38.1 Front View

    UC206 Insert Ball Bearing 30x62x38.1

    (You save )
    (No reviews yet) Write a Review
    SKU:
    UC206
    Minimum Purchase:
    100 units
    Inner Diameter:
    30mm
    Outer Diameter:
    62mm
    Inner Race Width:
    19mm
    Overall Race Width:
    38.1mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    2,570 lbs
    Dynamic Load:
    4,377 lbs
    Speed Limit:
    5,300 RPM
    Interchange Numbers:
    UC206-30MM

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

    Insert Set Screw Ball Bearing With Lubricating Groove Access, Sealed & Pre-Lubricated, Spherical Outer to Insert in Housing

    UC200 Insert Bearing Series has a set screw locking and is held in position on the shaft by two set screws which are directly on the extended end of the inner ring. Insert Bearing is self-aligning for standard load capacity. This specific arrangement is suitable for application as where the direction of rotation is alternative.

    The UC200 Series Insert Bearing are widely used as replacement bearings for Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4 Bolt Flanges, Take-Up Units, and many more. It can be costly to replace the whole unit however, buying just the replacement for the insert bearing can save you from over spending.

    Match #: UC206-30MM

    Product Videos

    Custom Field

    Inner Diameter 30mm
    Outer Diameter 62mm
    Inner Race Width 19mm
    Overall Race Width 38.1mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Static Load 2,570 lbs
    Dynamic Load 4,377 lbs
    Speed Limit 5,300 RPM
    Interchange Numbers UC206-30MM
