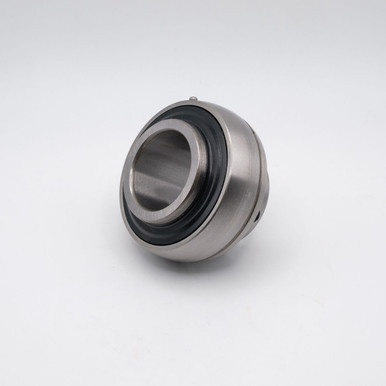

    • UC205-15 Insert Ball Bearing 15/16x52x34.1
  • UC205-15 Insert Ball Bearing 15/16x52x34.1 Side View
  • UC205-15 Insert Ball Bearing 15/16x52x34.1 Front View
  • UC205-15 Insert Ball Bearing 15/16x52x34.1 Side View UC205-15 Insert Ball Bearing 15/16x52x34.1 Front View

    UC205-15 Insert Ball Bearing 15/16x52x34.1

    (You save )
    Write a Review
    SKU:
    UC205-15
    Minimum Purchase:
    100 units
    Inner Diameter:
    15/16"
    Outer Diameter:
    52mm
    Inner Race Width:
    17mm
    Overall Race Width:
    34.1mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    1,810 lbs
    Dynamic Load:
    3,154 lbs
    Speed Limit:
    6,250 RPM
    Interchange Numbers:
    UC205-15S

    Adding to cart… category.add_cart_announcement
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview

    Product Description

    Insert Set Screw Ball Bearing With Lubricating Groove Access, Sealed & Pre-Lubricated, Spherical Outer to Insert in Housing

    UC200 Insert Bearing Series has a set screw locking and is held in position on the shaft by two set screws which are directly on the extended end of the inner ring. Insert Bearing is self-aligning for standard load capacity. This specific arrangement is suitable for application as where the direction of rotation is alternative.

    The UC200 Series Insert Bearing are widely used as replacement bearings for Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4 Bolt Flanges, Take-Up Units, and many more. It can be costly to replace the whole unit however, buying just the replacement for the insert bearing can save you from over spending.

    Match #: UC205-15S

    Product Videos

    Custom Field

    Inner Diameter 15/16"
    Outer Diameter 52mm
    Inner Race Width 17mm
    Overall Race Width 34.1mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Static Load 1,810 lbs
    Dynamic Load 3,154 lbs
    Speed Limit 6,250 RPM
    Interchange Numbers UC205-15S
