| Bore (inner diameter) | 25mm |
|---|---|
| Outer Diameter | 52mm |
| Width | 15mm |
| Material | Chrome Steel SAE-52100 |
|---|---|
| Lubrication | Light Oil |
| Country of Origin | China |
Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.
Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.
Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

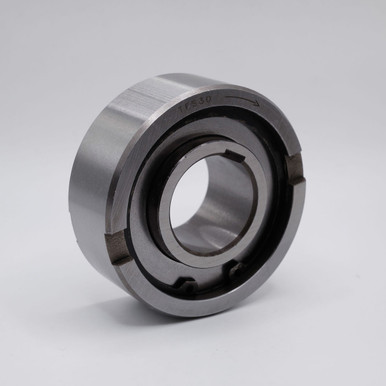

TSS25 is a Precision One Way Cam Clutch Bearing designed for pressed fit applications. This bearing features an internal key way which transmits torque onto a shaft. These bearings are characterized by their ability to turn in one direction only and thus transmit torque whilst having a zero backlash. This bearing is pre-lubricated with light oil and ideal for applications requiring high speed inner race overruning in a compact design.
Sizes: ID 25mm x OD 52mm x W 15mm = ID 0.984" x OD 2.047" x W 0.591"
Interchange: TSS25
Applications: Industrial Washing Machines, Clay Pigeon (Trap) throwers, Turbine Starter, Textile Machines, Belt Machines, Printing Machines, Flexible Material Converting Machines, Rotary Die Cutters, Rotary Die Cutters, Automatic Transmission, Helicopter Rotors, among others.
