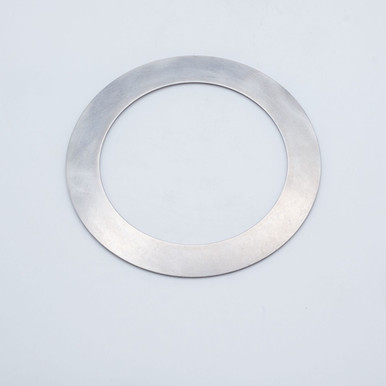

• TRA-613 Thrust Washer 3/8x13/16x1/32 Top View

    • TRA-613 Thrust Washer 3/8x13/16x3/64

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    TRA-613-TORRINGTON
    Minimum Purchase:
    100 units
    Inner Diameter:
    3/8"
    Outer Diameter:
    13/16"
    Width:
    3/64"
    Material:
    Chrome Steel SAE-52100
    Lubrication:
    Light Oil
    Country of Origin:
    USA
    Interchange Numbers:
    TWA613, TRA-613

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    TRA-613 Thrust Washer

    Key Features

    TRA-613 Thrust Washer is designed for use with thrust needle roller and cage assemblies in applications where adjacent components cannot serve as raceways. This thrust washer serves as a raceway surface for the thrust assembly’s rolling elements and can be used as a shaft washer (bore-piloting washer) fixed on the shaft or a housing washer (outer diameter-piloting washer) fixed in the housing. Both sides of the washer can be used as raceways and are flush ground for higher speeds and greater running accuracy than unground raceways. The washer is made of low alloy, through-hardened chromium steel for durability, heat tolerance, and resistance to deformity under heavy loads.

    Applications / Industries

    TRA-613 is used in a variety of industries such as Axle Assemblies, Motors, Transmissions, Pumps, Power Take-offs, Rolling Mills, Ship Rudder Shafts, and Winches.

    Product Videos

    Custom Field

    Inner Diameter 3/8"
    Outer Diameter 13/16"
    Width 3/64"
    Material Chrome Steel SAE-52100
    Lubrication Light Oil
    Country of Origin USA
    Interchange Numbers TWA613, TRA-613
