Thermoplastic Bearing Units

TP-SSBLF207-22 Thermoplastic Stainless 2-Bolt Flange Bearing 1-3/8" Bore

SKU: TP-SSBLF207-22
  • Free shipping on most orders
  • Ships from Glendale, CA

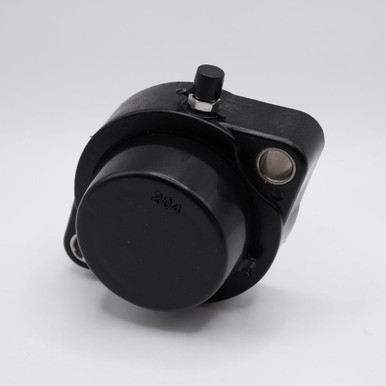

  • TP-SSBLF207-22 2-Bolt Flange Bearing 1-3/8" Bore Right Angled Cap View
  • TP-SSBLF207-22 2-Bolt Flange Bearing 1-3/8" Bore Left Angled Cap View

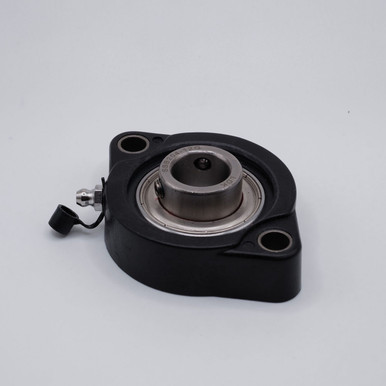

  • TP-SSBLF207-22 2-Bolt Flange Bearing 1-3/8" Bore Flat Right Angled View

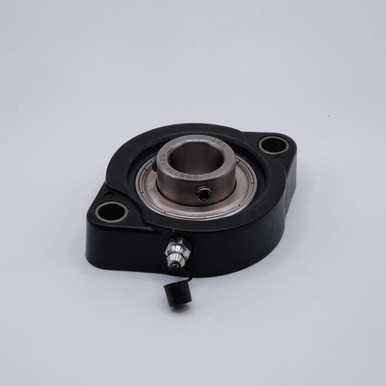

  • TP-SSBLF207-22 2-Bolt Flange Bearing 1-3/8" Bore Flat Left Angled View
  • TP-SSBLF207-22 2-Bolt Flange Bearing 1-3/8" Bore Flat View
  • TP-SSBLF207-22 2-Bolt Flange Bearing 1-3/8" Bore Left Angle Back View

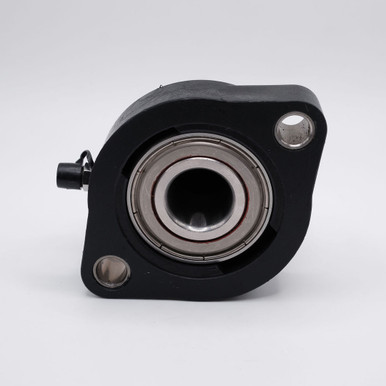

  • TP-SSBLF207-22 2-Bolt Flange Bearing 1-3/8" Bore Back View
  • TP-SSBLF207-22 2-Bolt Flange Bearing 1-3/8" Bore Right Angled Back View

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)1-3/8"
    Overall Length126mm
    Overall Height94mm
    Bolt-hole spacing100mm

    Construction

    Bearing MaterialStainless Steel AISI-440C
    Housing MaterialThermoplastic
    LubricationChevron SRI-2 Grease
    Country of OriginChina

    Performance

    Static Load3,496 lbs
    Dynamic Load5,775 lbs
    Speed Limit4,500 RPM

    Interchange numbers 1

    • TP-SSBLF207-22
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    TP-SSBLF207-22 Thermoplastic 2-Bolt Flange Bearing

    Key Features

    TP-SSBLF207-22 is a Thermoplastic 2-Bolt Flange Bearing Unit featuring a shorter bolt hole pattern as well as two Set Screws on the extended end of the insert, which can be tightened when positioned onto a shaft. This bearing is a combination of a thermoplastic housing and a stainless steel insert, making this bearing highly corrosion resistant and ideal for applications in corrosive environments. Our Thermoplastic Mounted Block Units are pre-lubricated with light oil, ensuring it is ready for immediate use upon arrival.

    Applications / Industries

    TP-SSBLF207-22 Thermoplastic 2-Bolt Flange Units are used in a variety of applications in Corrosive Environments, Food Processing, Canning, Bottling, Pharmaceutical Industry, Chemical Processing, Photographic Industry, and other applications requiring contact with corrosive substances.
