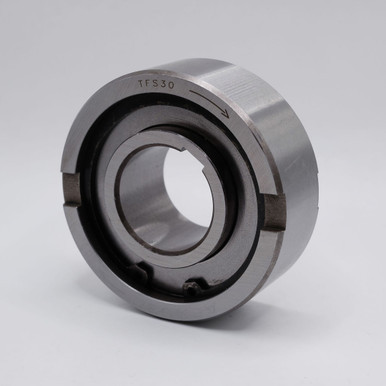

• TFS30 Clutch Compressor Ball Bearing 30x72x27mm Right Angled View

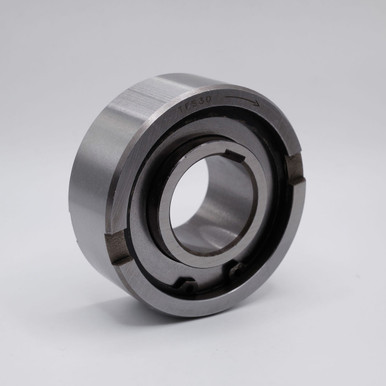

  • TFS30 Clutch Compressor Ball Bearing 30x72x27mm Left Angled View
  • TFS30 Clutch Compressor Ball Bearing 30x72x27mm Front View

    • TFS30 Clutch Compressor Ball Bearing 30x72x27mm

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    TFS30
    Minimum Purchase:
    100 units
    Inner Diameter:
    30mm
    Outer Diameter:
    72mm
    Width:
    27mm
    Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Country of Origin:
    China
    Interchange Numbers:
    TFS30

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    TFS30 Cam Clutch Ball Bearing

    Key Features

    TFS30 is a Cam Clutch Ball Bearing with two vertical keyways, an internal keyway and has been pre-lubricated with grease to allow it to be ready to use upon delivery. The vertical keyways on the outer ring allow for easier locating in an applications while the internal keyway transmitts torque to a shaft. This bearing is designed to turn in only one direction and transmit torque while reducing backlash.

    Applications / Industries

    TFS30 One Way Clutch Bearings are used in a variety of overrunning applications, ranging from Agricultural Machinery to Industrial Washing Machines, Clay Pigeon (Trap) Throwers, Conveying Equipment, Electric Motors, CNC Machinery, Mining Equipment, Robotics, Textile Machinery, Rolling Mills, HVAC Systems, among others.

    Product Videos

    Custom Field

    Inner Diameter 30mm
    Outer Diameter 72mm
    Width 27mm
    Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Country of Origin China
    Interchange Numbers TFS30
