• SWP04 Inch Size Linear Plain Bearing PTFE Lined 1/4x1/2x3/4 Right Angled View

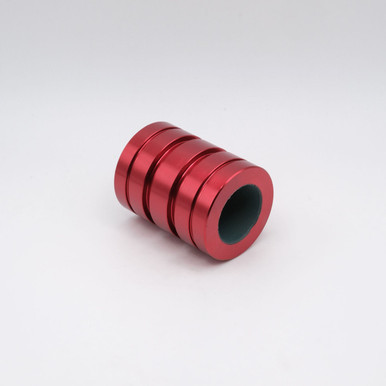

  • SWP04 Inch Size Linear Plain Bearing PTFE Lined 1/4x1/2x3/4 Left Angled View

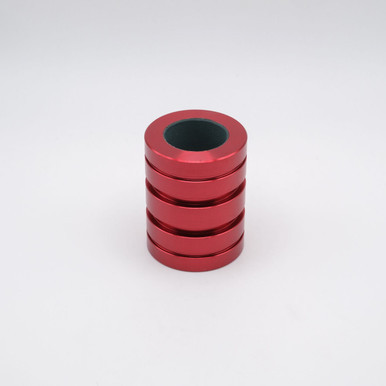

  • SWP04 Inch Size Linear Plain Bearing PTFE Lined 1/4x1/2x3/4 Front View

    • SWP04 Inch Size Plain Linear Bearing PTFE Lined 1/4x1/2x3/4

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    SWP04
    Minimum Purchase:
    100 units
    Inner Diameter:
    1/4"
    Outer Diameter:
    1/2"
    Length:
    3/4"
    Material:
    Aluminum Alloy
    Lubrication:
    None
    Static Load:
    600 lbf
    Country of Origin:
    China
    Interchange Numbers:
    SWP04, FL04

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    SWP04 Self-Lubricating Plain Linear Bearing

    Key Features

    SWP04 is an Inch Size Closed Plain Linear Bearing with no seals and no lubrication. This linear bearing is made from aluminum alloy and features a PTFE liner that has self-lubricating properties, allowing for oil free operation. SWP04 has been designed with grooves on the outer shell, allowing for the use of o-rings and retaining rings for multiple mounting options. SWP04 is ideal for standard load capacities and its vibration dampening design makes it ideal for applications requiring smooth & quiet operation.

    Applications / Industries

    SWP04 Self-Lubricating Closed Type Plain Linear Bearings are used in a variety of applicationgs ranging from Automatic Warehouses to Feeder Technology, Packaging and Palletizing Equipment, Robotics, Paper Mills, Laser Cutting Technology, Rail Equipment, Agricultural & Forestry Machinery, Aircraft Assembly Platforms, Vacuum Systems, Automotive Industry, and Machine Tools, among others.

    Product Videos

    Custom Field

    Inner Diameter 1/4"
    Outer Diameter 1/2"
    Length 3/4"
    Material Aluminum Alloy
    Lubrication None
    Static Load 600 lbf
    Country of Origin China
    Interchange Numbers SWP04, FL04
