• SWF12UU Linear Ball Bearing Sealed 3/4x1-1/4x1-5/8 Right Angled View

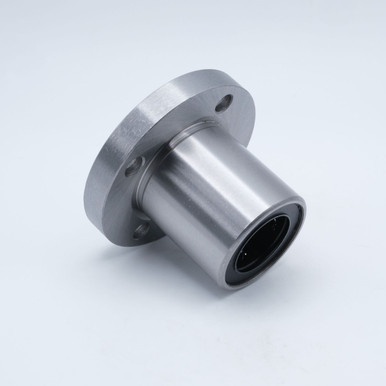

  • SWF12UU Linear Ball Bearing Sealed 3/4x1-1/4x1-5/8 Left Angled View
  • SWF12UU Linear Ball Bearing Sealed 3/4x1-1/4x1-5/8 Back Left Angled View

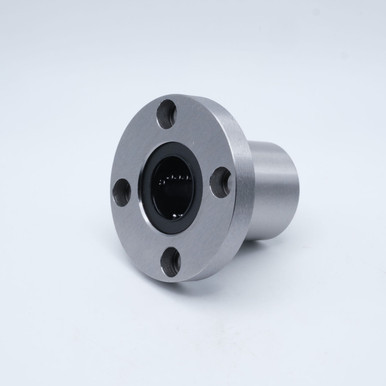

  • SWF12UU Linear Ball Bearing Sealed 3/4x1-1/4x1-5/8 Back Right Angled View
  • SWF12UU Linear Ball Bearing Sealed 3/4x1-1/4x1-5/8 Top View

    • SWF12UU Linear Motion Ball Sliding Bearing 3/4x1-1/4x1-5/8

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    SWF12UU
    Minimum Purchase:
    100 units
    Bore Size:
    3/4"
    Outer Diameter:
    1-1/4" (31.75mm)
    Length:
    1-5/8" (41.28mm)
    Bolt Hole to Bolt Hole:
    1-23/32" (43.66mm)
    Static Load:
    308 lbs
    Dynamic Load:
    194 lbs
    Bearing Material:
    Chrome Steel
    Interchange Numbers:
    SWF12UU, SWF12GUU, SWF12GW, IFED12VUU, U-LHFR0.75, SWF12

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    SWF Bearing Series is a Precision Round Flange Linear Resin Retainer Ball Motion Slide Bearing Both Sides Rubber Sealed with a Resin Retainer

    Match #: SWF12UU, SWF12GUU, SWF12GW, IFED12VUU, U-LHFR0.75, SWF12

    Product Videos

    Custom Field

    Bore Size 3/4"
    Outer Diameter 1-1/4" (31.75mm)
    Length 1-5/8" (41.28mm)
    Bolt Hole to Bolt Hole 1-23/32" (43.66mm)
    Static Load 308 lbs
    Dynamic Load 194 lbs
    Bearing Material Chrome Steel
    Interchange Numbers SWF12UU, SWF12GUU, SWF12GW, IFED12VUU, U-LHFR0.75, SWF12
