• SWDP20 Plain Linear Pillow Block Bearing 1-1/4" Bore Right Angled View

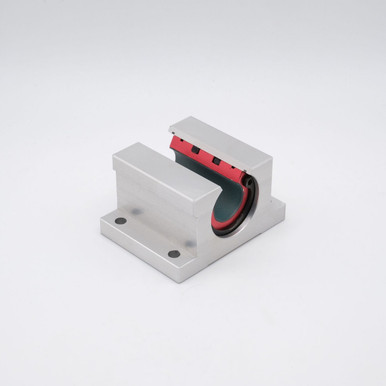

  • SWDP20 Plain Linear Pillow Block Bearing 1-1/4" Bore Left Angled View
  • SWDP20 Plain Linear Pillow Block Bearing 1-1/4" Bore Front View
  • SWDP20 Plain Linear Pillow Block Bearing 1-1/4" Bore Top View
  • SWDP20 Plain Linear Pillow Block Bearing 1-1/4" Bore Flipped View
  • SWDP20 Plain Linear Pillow Block Bearing 1-1/4" Bore Bottom View

    • SWDP20 Open PTFE Lined Plain Linear Pillow Block Bearing 1-1/4" Bore PN20

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Wholesale Pricing By Quote — Request a Quote
    Write a Review
    SKU:
    SWDP20
    Minimum Purchase:
    100 units
    Inner Diameter:
    1-1/4"
    Overall Length:
    3-3/8"
    Overall Width:
    4"
    Overall Height:
    2-1/2"
    Bolt Hole to Bolt Hole (Width):
    3-1/2"
    Bolt Hole to Bolt Hole (Length):
    2"
    Bolt Hole Size:
    7/32"
    Bearing Material:
    Aluminum Alloy
    Housing Material:
    Aluminum Alloy
    Lubrication:
    None
    Static Load:
    10,290 lbs
    Country of Origin:
    China
    Interchange Numbers:
    SWDP20, PN20
    Request a Quote for 100+ Units

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    SWDP20 Self-Lubricating Plain Linear Pillow Block Bearing

    Key Features

    SWDP20 is a Self-Lubrication Open Type Plain Linear Pillow Block Bearing with no seals and no lubrication. The housing and the plain linear bearing are made from aluminum alloy and features a PTFE liner that has self-lubricating properties, allowing for oil free operation. This bearing has been machined to tighter tolerances, allowing for greater precision. Our Plain Linear Pillow Block Bearings are ideal for standard load capacities and their vibration dampening design makes them ideal for applications requiring smooth & quiet operation.

    Applications / Industries

    SWDP20 Self-Lubricating Open Type Plain Linear Pillow Block Bearings are used in a variety of applicationgs ranging from Automatic Warehouses to Feeder Technology, Packaging and Palletizing Equipment, Robotics, Paper Mills, Laser Cutting Technology, Rail Equipment, Agricultural & Forestry Machinery, Aircraft Assembly Platforms, Vacuum Systems, Automotive Industry, and Machine Tools, among others.

    Product Videos

    Custom Field

    Inner Diameter 1-1/4"
    Overall Length 3-3/8"
    Overall Width 4"
    Overall Height 2-1/2"
    Bolt Hole to Bolt Hole (Width) 3-1/2"
    Bolt Hole to Bolt Hole (Length) 2"
    Bolt Hole Size 7/32"
    Bearing Material Aluminum Alloy
    Housing Material Aluminum Alloy
    Lubrication None
    Static Load 10,290 lbs
    Country of Origin China
    Interchange Numbers SWDP20, PN20
