Product Description

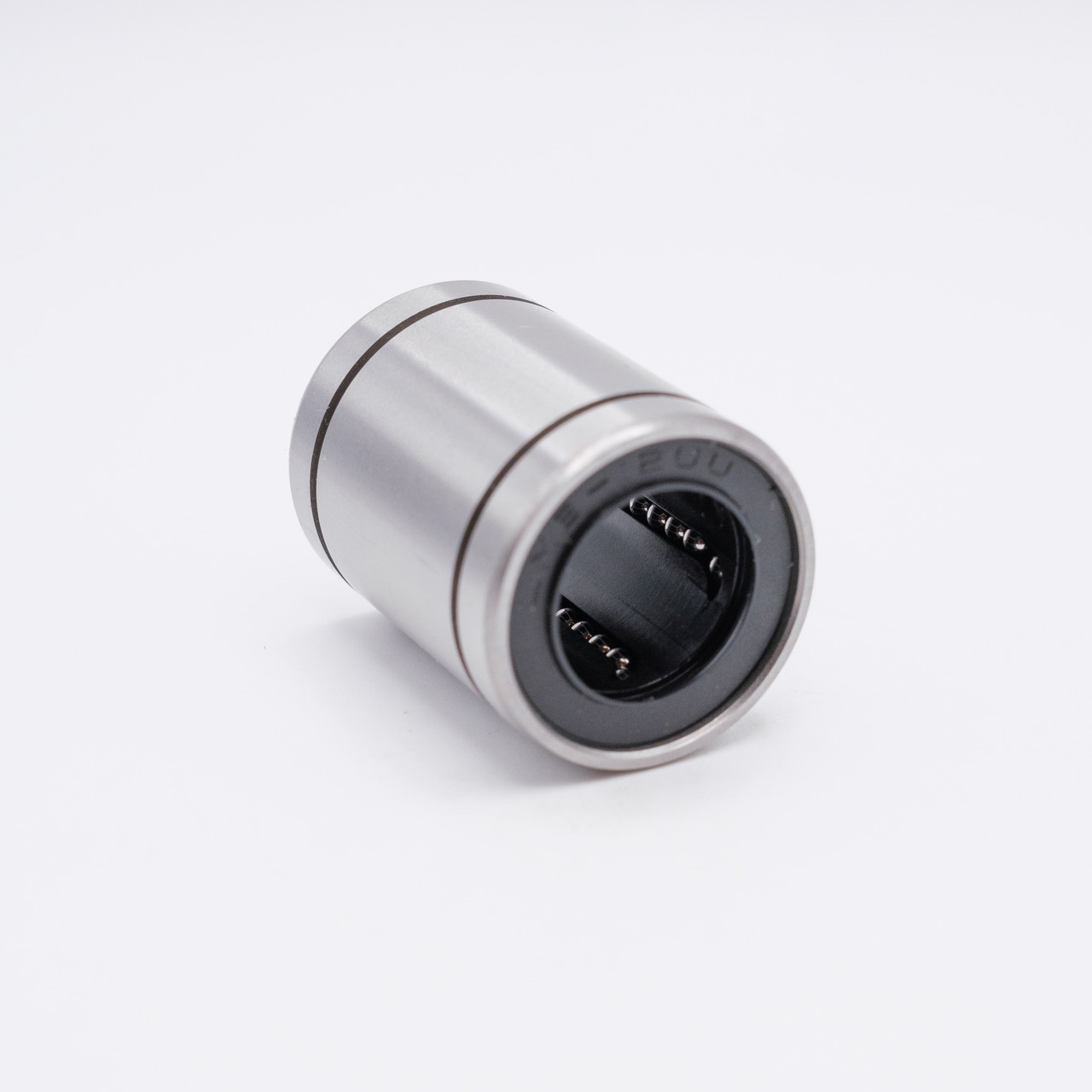

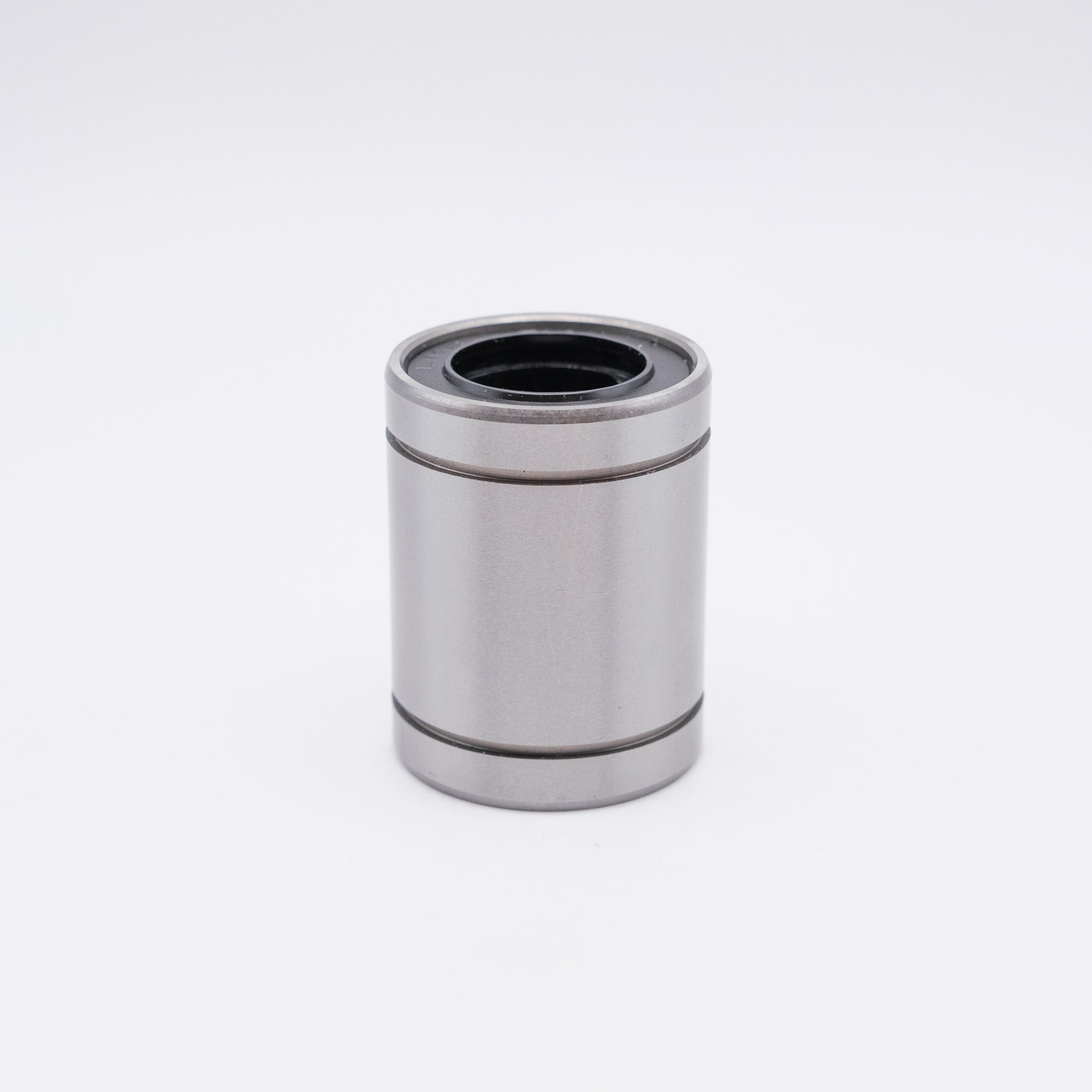

SW10UU Linear Motion Self Aligning Ball Bushing Bearing Polyamide Resin Retainer
The Linear Ball Bushing bearing is self-aligning, lightweight and adjustable with a low coefficient of friction.
The wear-resistant, engineered-polymer retainers and outer sleeves reduce inertia and noise in critical, high speed applications.
Radially floating bearing plates. When installed in an adjustable housing, the Super Ball Bushing Bearing may be adjusted to a specific diametrical fit-up for accurate and repeatable movement.
Match #: 0750-210-00, LBB-625PP, KBZ-10PP, LBB10UU, LMB10UU, SW10GUU, SW10UU
Product Videos
Custom Field
Bore Size 5/8"
Outer Diameter 1-1/8"
Length 1-1/2"
Static Load 265 lbf
Dynamic Load 174 lbf
Interchange Numbers 0750-210-00, LBB-625PP, KBZ-10PP, LBB10UU, LMB10UU, SW10GUU, SW10UU
Bearing Material Chrome Steel
