Thermoplastic Bearing Units

SUCVFL201-8 Plastic Oval 2 Bolt Flange 1/2" Shaft

SKU: SUCVFL201-8
  • Free shipping on most orders
  • Ships from Glendale, CA
  • SUCVFL201-8 Plastic Oval 2 Bolt Flange 1/2" Bore Front Right Angled View
  • SUCVFL201-8 Plastic Oval 2 Bolt Flange 1/2" Front Left Angled View
  • SUCVFL201-8 Plastic Oval 2 Bolt Flange 1/2" Front View

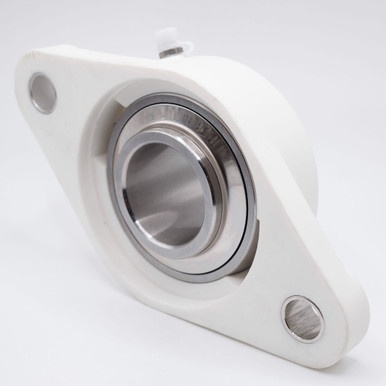

  • SUCVFL201-8 Plastic Oval 2 Bolt Flange 1/2" Back Right Angled View

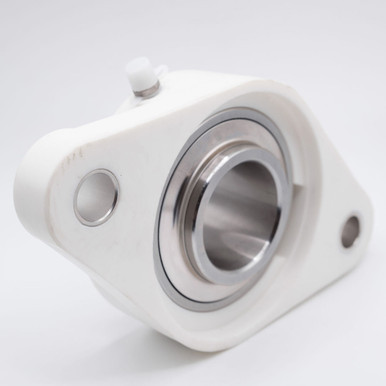

  • SUCVFL201-8 Plastic Oval 2 Bolt Flange 1/2" Back Left Angled View
  • SUCVFL201-8 Plastic Oval 2 Bolt Flange 1/2" Back View
  • SUCVFL201-8 Plastic Oval 2 Bolt Flange 1/2" Cap view

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)1/2"
    Overall Length4-29/64"
    Overall Height2-23/64"
    Bolt-hole spacing3-35/64"

    Construction

    Bearing MaterialStainless Steel AISI-440C
    Housing MaterialThermoplastic
    LubricationChevron SRI-2 Grease
    Country of OriginChina

    Performance

    Static Load1,060 lbs
    Dynamic Load2,140 lbs
    Speed Limit8,800 RPM

    Interchange numbers 3

    • VFL1/2
    • VFL201-8
    • SUCVFL201-8
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    SUCVFL201-8 Plastic Oval 2 Bolt Flange Ball Bearing

    Key Features

    SUCVFL201-8 is a High Quality Plastic Oval Pillow Block Housing with a Stainless Steel Ball Bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft and the housing comes with a grease feed for relubrication of the bearing. SUCVFL201-8 is equipped with two specifically designed set screws that are positioned in the inner ring of the ball bearing to lock and attach to the shaft. Due to it plastic housing and stainless steel insert, this unit is highly corrosion resistant and is ideal for applications requiring contact with moisture and being placed in corrosive environments. Our mounted block bearings are pre-lubricated with grease to allow it to be ready to use upon arrival.

    Applications / Industries

    SUCVFL201-8 Plastic Oval 2-Bolt Pillow Blocks are used in a variety of applications such as Agricultural Machinery, Construction Equipment, Pumps, Manufacturing Equipment, Sporting and Consumer Goods, Conveyor and Fan Assemblies, HVAC Systems, Feed Mill, Chemical Processing, Food and Beverage Processing, among other Industrial Equipment.
