UC Series

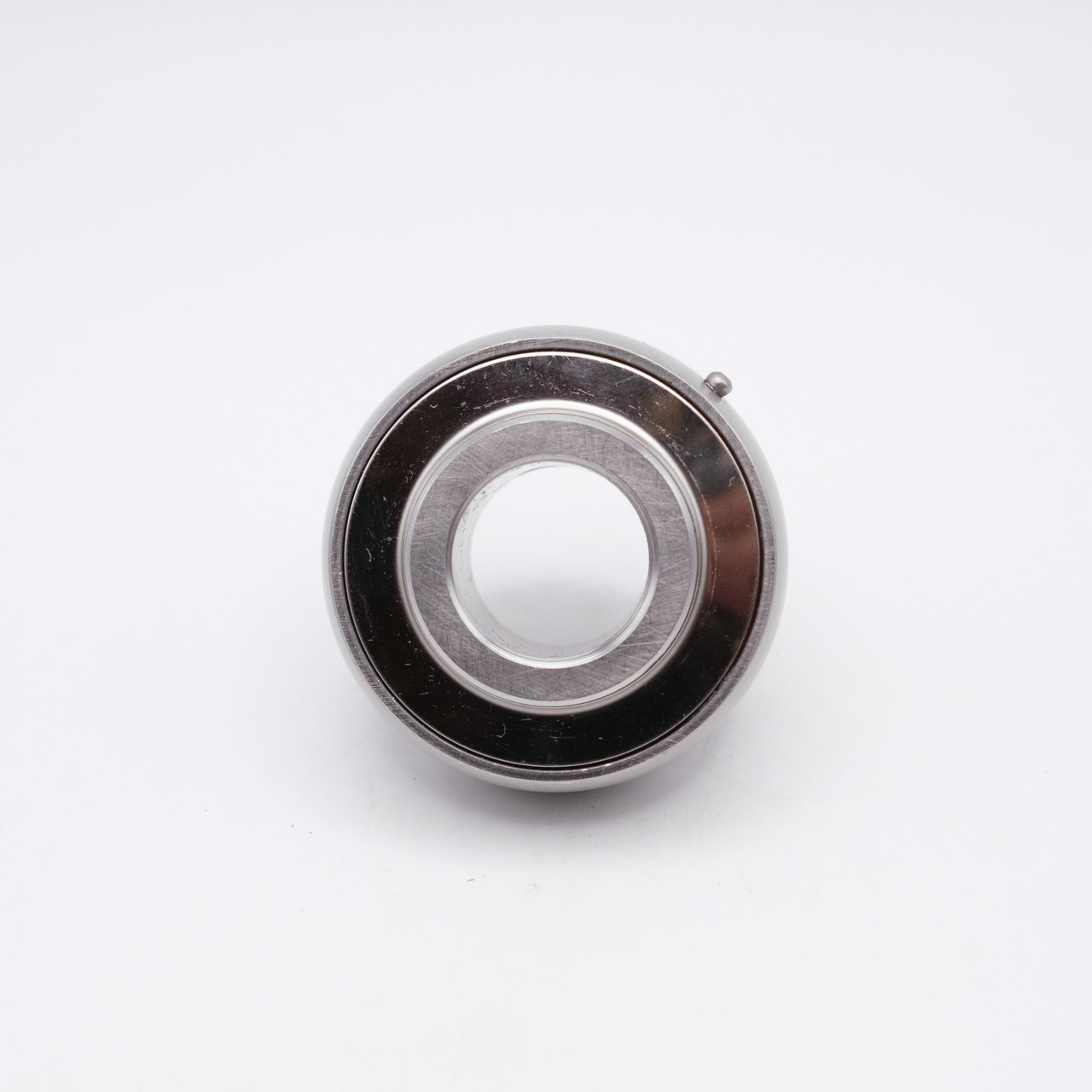

SUC208-24 Stainless Steel Insert Ball Bearing 1-1/2x80x49.2
- Free shipping on most orders
- Ships from Glendale, CA
Specifications
Dimensions
| Bore (inner diameter) | 1-1/2" |
|---|---|
| Outer Diameter | 80mm |
| Inner Race Width | 49.2mm |
| Outer Race Width | 21mm |
Construction
| Material | Stainless Steel AISI-440C |
|---|---|
| Lubrication | Chevron SRI-2 Grease |
Performance
| Static Load | 4,078 lbs |
|---|---|
| Dynamic Load | 6,650 lbs |
| Speed Limit | 4,000 RPM |
Interchange numbers 1
- SUC208-24S
Ordering & returns
Lead time
Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.
Before you order
Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.
Shipping and returns
Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.
Description
Stainless Steel Insert Set Screw Ball Bearing With Lubricating Groove Access, Sealed & Pre-Lubricated, Spherical Outer to Insert in Housing
SUC200 Stainless Steel Insert Bearing Series has a set screw locking and is held in position on the shaft by two set screws which are directly on the extended end of the inner ring. Insert Bearing is self-aligning for standard load capacity. This specific arrangement is suitable for application as where the direction of rotation is alternative. This bearings stainless steel design makes it highly corrosion resistant which is ideal for applications involving contact with moisture.
The SUC200 Series Insert Bearing are widely used as replacement bearings for Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4 Bolt Flanges, Take-Up Units, and many more. It can be costly to replace the whole unit however, buying just the replacement for the insert bearing can save you from over spending.
The SUC200 Series Insert Bearing are widely used as replacement bearings for Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4 Bolt Flanges, Take-Up Units, and many more. It can be costly to replace the whole unit however, buying just the replacement for the insert bearing can save you from over spending.
Match #: SUC208-24S
