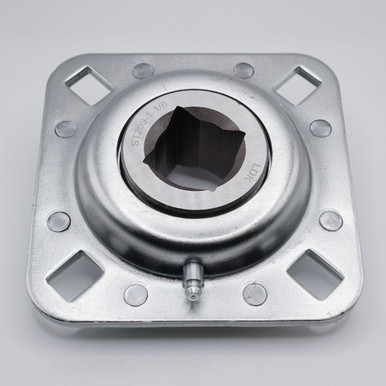

• ST209-1-1/8 Disk Harrow Unit 1-1/8" Bore Top View
  • ST209-1-1/8 Disk Harrow Unit 1-1/8" Bore Bottom View

    • ST209-1-1/8 Disk Harrow Unit 1-1/8" Bore

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Wholesale Pricing By Quote — Request a Quote
    Write a Review
    SKU:
    ST209-1-1/8
    Minimum Purchase:
    100 units
    Inner Diameter:
    1-1/8"
    Overall Length:
    127mm
    Housing Material:
    Pressed Steel
    Bearing Material:
    Chrome Steel SAE-52100
    Static Load:
    3,934 lbs
    Dynamic Load:
    7,160 lbs
    Speed Limit:
    500 RPM
    Country of Origin:
    China
    Interchange Numbers:
    44B347-1, 700-98-5, AFD210R, B2725, DHU1-1/8S209, DHU118S209, FD209RM, FD209RMDS, FD210R, ST209-1-1/8
    Request a Quote for 100+ Units

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    ST209-1-1/8 Disk Harrow Unit

    Key Features

    ST209-1-1/8 is a Disk Harrow Unit with a square bore and are made with triple lip seals to protect from corrosive environments. The seal is a one piece shroud cover with three molded contact seals. This bearing is a square bore farm implemented bearing and is housed in a pressed steel square housing. This bearing is pre-lubricated with grease, allowing for immediate use in agricultural applications.

    Applications / Industries

    ST209-1-1/8 Disk Harrow Units are used in a variety of agricultural applications such as Hay Balers, Peanut Combines, Planters, Harvesters, KEWANEE Harrow Disc 1000, 1030, 1025, 1175 & 1100, Electric Motors, Disc Harrows, Grain Augers, Rotary Cutters, Mowers, Sprayers, Fertilizers, Feed Mixers, Manure Spreaders, among others.

    Product Videos

    Custom Field

    Inner Diameter 1-1/8"
    Overall Length 127mm
    Housing Material Pressed Steel
    Bearing Material Chrome Steel SAE-52100
    Static Load 3,934 lbs
    Dynamic Load 7,160 lbs
    Speed Limit 500 RPM
    Country of Origin China
    Interchange Numbers 44B347-1, 700-98-5, AFD210R, B2725, DHU1-1/8S209, DHU118S209, FD209RM, FD209RMDS, FD210R, ST209-1-1/8
