SFR1810-ZZEE Stainless Flanged Mini Ball Bearing SSRIF-8516ZZ 5/16x1/2x5/32 Inches

SKU: SFR1810-ZZEE
  • Free shipping on most orders
  • Ships from Glendale, CA

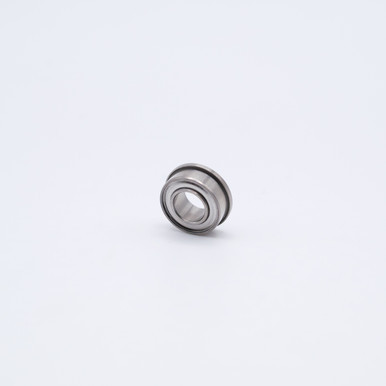

  • SFR1810-ZZEE Stainless Flanged Mini Ball Bearing 5/16x1/2x5/32 Right Angled View

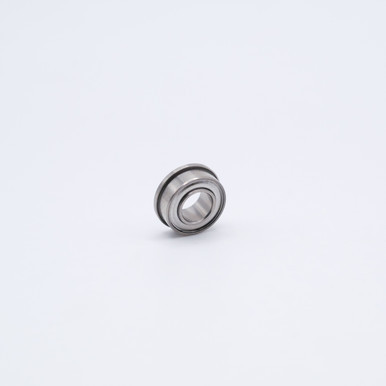

  • SFR1810-ZZEE Stainless Flanged Mini Ball Bearing 5/16x1/2x5/32 Left Angled View

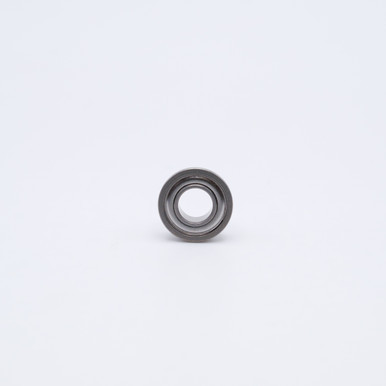

  • SFR1810-ZZEE Stainless Flanged Mini Ball Bearing 5/16x1/2x5/32 Back View
  • SFR1810-ZZEE Stainless Flanged Mini Ball Bearing 5/16x1/2x5/32 Flat Side View

    • Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose the quantity you need.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)5/16"
    Outer Diameter1/2"
    Width5/32"

    Construction

    Closure TypeMetal Shielded
    MaterialStainless Steel AISI-440C
    LubricationChevron SRI-2 Grease
    Country of OriginChina

    Performance

    Static Load40 lbs
    Dynamic Load121 lbs
    Speed Limit40,000 RPM

    Interchange numbers 2

    • SSFR1810ZZEE
    • SSRIF-8516ZZEE
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    SFR1810-ZZEE Miniature Inch Ball Bearing

    Key Features

    SFR1810-ZZEE is a Precision Stainless Steel Flanged Ball Bearing manufactured to have an Extended Inner Ring, both sides Metal Shielded and is pre-lubricated with Grease, allowing it to be ready for use upon delivery. The term "Flange" refers the the projecting flat rim on the outer race of the bearing, this flange is used to attach and maintain its position in an application. Made from Stainless Steel, SFR1810-ZZEE is a Miniature Ball Bearing that can withstand both moderate radial and axial loads while providing high performance. Our SFR Series Inch Sized Miniature Ball Bearings are available Open, Metal Shielded or with Rubber Sealed closures.

    Applications / Industries

    SFR1810-ZZEE Miniature Inch Ball Bearings are widely used in various industries and everyday applications such as Electric Fans, Automotives, RC Cars, RC Planes, RC Helicopters, Industrial & Medical Hand Pieces, Surgical Equipment, Household Electrical Appliances, Medical Instruments, Surveillance Systems, Robotics, among others.
