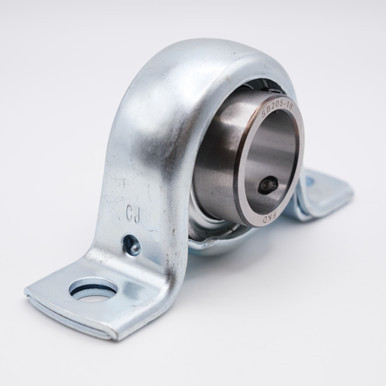

• SBPP206-17 Pressed Steel Set Screw Pillow Block Bearing Angled View
  • SBPP206-17 Pressed Steel Set Screw Pillow Block Bearing Angled View
  • SBPP206-17 Pressed Steel Set Screw Pillow Block Bearing Top View

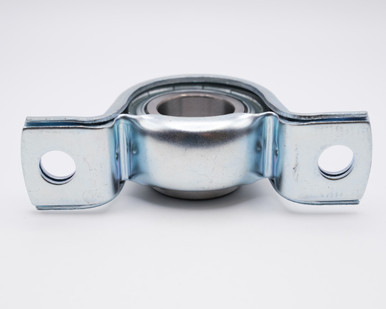

  • SBPP206-17 Pressed Steel Set Screw Pillow Block Bearing Bottom View

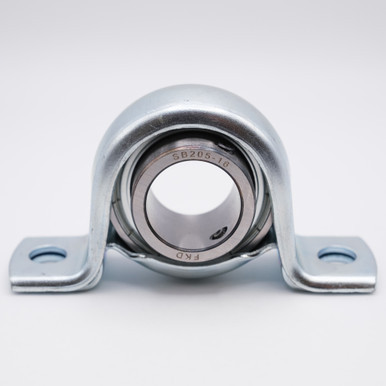

  • SBPP206-17 Pressed Steel Set Screw Pillow Block Bearing Front View
  • SBPP206-17 Pressed Steel Set Screw Pillow Block Bearing Back View

    • SBPP206-17 Pressed Steel Set Screw Pillow Block Bearing-Shaft Size 1-1/16 inch

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    SBPP206-17
    Minimum Purchase:
    100 units
    Inner Diameter:
    1-1/16"
    Overall Length:
    4-39/64"
    Overall Height:
    2-39/64"
    Bolt Hole to Bolt Hole:
    3-47/64"
    Base to Center:
    1-5/16"
    Housing Material:
    Pressed Steel
    Insert Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    2,570 lbf
    Dynamic Load:
    4,377 lbf
    Speed Limit:
    5,300 RPM
    Country of Origin:
    China
    Interchange Numbers:
    BPP6-18, SBPP206-18F, PBY1-1/8, ASPP206-018, SSP-18

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    SBPP206-17 Pressed Steel Pillow Block Bearing

    Key Features

    SBPP206-17 is a Mounted Block Unit Bearing which has a combination of a pressed steel pillow block bearing and a light duty set screw insert ball bearing. This unit is equipped with two set screws, that are positioned on the extended inner ring of the insert ball bearing, to lock and attach to the shaft. Our SBPP200 Series come pre-lubricated with grease to allow it to be ready to use upon arrival.

    Applications / Industries

    SBPP206-17 Pressed Steel Mounted Blocks are used in a variety of applications such as Agriculture, Automotive, Printer, Pump, Sporting and Consumer Goods, Construction, Manufacturing Equipment, Conveyor and Fan Assemblies, and light and heavy industrial use.

    Product Videos

    Custom Field

    Inner Diameter 1-1/16"
    Overall Length 4-39/64"
    Overall Height 2-39/64"
    Bolt Hole to Bolt Hole 3-47/64"
    Base to Center 1-5/16"
    Housing Material Pressed Steel
    Insert Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 2,570 lbf
    Dynamic Load 4,377 lbf
    Speed Limit 5,300 RPM
    Country of Origin China
    Interchange Numbers BPP6-18, SBPP206-18F, PBY1-1/8, ASPP206-018, SSP-18
