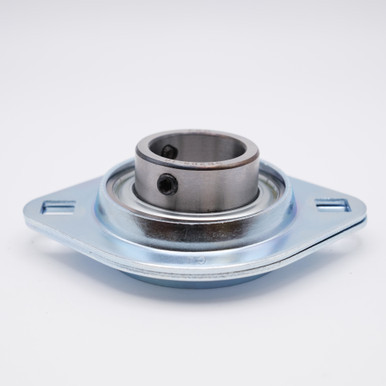

  • SBPFL204-12 Pressed Steel Two Bolt Flange Set Screw Mounted Bearing 3/4" Bore
  • SBPFL204-12 Pressed Steel Two Bolt Flange Set Screw Mounted Bearing 3/4" Bore Front View
  • SBPFL204-12 Pressed Steel Two Bolt Flange Set Screw Mounted Bearing 3/4" Bore Back View
  • SBPFL204-12 Pressed Steel Two Bolt Flange Set Screw Mounted Bearing 3/4" Bore Disassembled View
  • SBPFL204-12 Pressed Steel Two Bolt Flange Set Screw Mounted Bearing 3/4" Bore Disassembled View
  • SBPFL204-12 Pressed Steel Two Bolt Flange Set Screw Mounted Bearing 3/4" Bore Front View SBPFL204-12 Pressed Steel Two Bolt Flange Set Screw Mounted Bearing 3/4" Bore Back View SBPFL204-12 Pressed Steel Two Bolt Flange Set Screw Mounted Bearing 3/4" Bore Disassembled View SBPFL204-12 Pressed Steel Two Bolt Flange Set Screw Mounted Bearing 3/4" Bore Disassembled View

    SBPFL204-12 Pressed Steel Two Bolt Flange Set Screw Mounted Bearing 3/4" Bore

    (You save )
    (No reviews yet) Write a Review
    SKU:
    SBPFL204-12
    Minimum Purchase:
    100 units
    Bore Size:
    3/4"
    Bolt Hole to Bolt Hole:
    2-13/16" (71.5mm)
    Overall Width:
    2-41/64" (67mm)
    Static Load:
    2,500 lbs
    Dynamic Load:
    2,900 lbs
    Housing Material:
    Pressed Steel
    Bearing Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Interchange Numbers:
    ASPFL 204-012, BPFL 4-12
    Speed Limit:
    7,450 RPM

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

    SBPFL200 Series Press Steel Oval Shape 2 Bolt Flange Light Duty Housing with Set Screw Locking Collar Ball Bearing in Unit, Pre Lubricated with Grease

    SBPFL200 Pressed Steel Oval 2-Bolt Flange Bearing Series contains pressed steel oval 2-bolt flange bearing housing and a light duty set screw locking insert bearing. This specific bearing is designated for light to medium duty applications; they can be bolted to sheet metal frameworks and timber if necessary.

    Common usage for SBPFL200 Series Pressed Steel Oval 2-Bolt Flange Bearing: Automotive, Agricultural, Conveyor, Fan Assemblies, Light to Heavy Industrial Use, and Engineering Needs.

    Match #:  ASPFL 204-012, BPFL 4-12

    Product Videos

    Custom Field

    Bore Size 3/4"
    Bolt Hole to Bolt Hole 2-13/16" (71.5mm)
    Overall Width 2-41/64" (67mm)
    Static Load 2,500 lbs
    Dynamic Load 2,900 lbs
    Housing Material Pressed Steel
    Bearing Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Interchange Numbers ASPFL 204-012, BPFL 4-12
    Speed Limit 7,450 RPM
