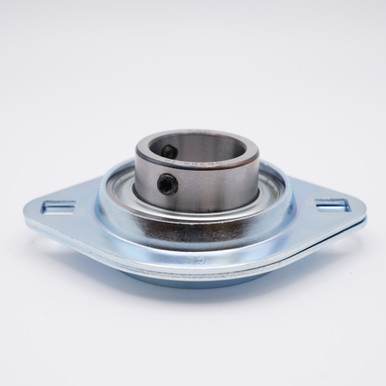

• SBPFL203 Pressed Steel Two Bolt Flange Set Screw Mounted Bearing 17mm Bore Front View
  • SBPFL203 Pressed Steel Two Bolt Flange Set Screw Mounted Bearing 17mm Bore Back View
  • SBPFL203 Pressed Steel Two Bolt Flange Set Screw Mounted Bearing 17mm Bore Disassembled View
  • SBPFL203 Pressed Steel Two Bolt Flange Set Screw Mounted Bearing 17mm Bore Disassembled View

    • SBPFL203 Pressed Steel Two Bolt Flange Set Screw Mounted Bearing 17mm Bore

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    SBPFL203
    Minimum Purchase:
    100 units
    Bore Size:
    17mm
    Bolt Hole to Bolt Hole:
    2-1/2" (63.5mm)
    Overall Width:
    2-21/64" (59mm)
    Static Load:
    1,060 lbs
    Dynamic Load:
    2,140 lbs
    Housing Material:
    Pressed Steel
    Bearing Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Interchange Numbers:
    RATY17, ASPFL 203, BPFL 3
    Speed Limit:
    8,800 RPM

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    SBPFL200 Series Press Steel Oval Shape 2 Bolt Flange Light Duty Housing with Set Screw Locking Collar Ball Bearing in Unit, Pre Lubricated with Grease

    SBPFL200 Pressed Steel Oval 2-Bolt Flange Bearing Series contains pressed steel oval 2-bolt flange bearing housing and a light duty set screw locking insert bearing. This specific bearing is designated for light to medium duty applications; they can be bolted to sheet metal frameworks and timber if necessary.

    Common usage for SBPFL200 Series Pressed Steel Oval 2-Bolt Flange Bearing: Automotive, Agricultural, Conveyor, Fan Assemblies, Light to Heavy Industrial Use, and Engineering Needs.

    Match #: RATY17, ASPFL 203, BPFL 3

    Product Videos

    Custom Field

    Bore Size 17mm
    Bolt Hole to Bolt Hole 2-1/2" (63.5mm)
    Overall Width 2-21/64" (59mm)
    Static Load 1,060 lbs
    Dynamic Load 2,140 lbs
    Housing Material Pressed Steel
    Bearing Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Interchange Numbers RATY17, ASPFL 203, BPFL 3
    Speed Limit 8,800 RPM
