Product Description

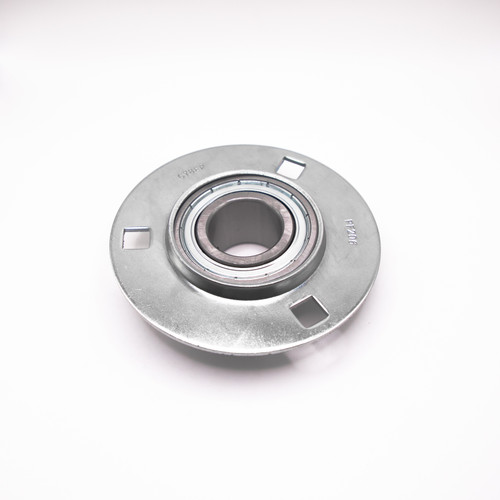

SBPF200 Series Press Steel 3 Bolt Round Flange Light Duty Housing with Set Screw Ball Bearing in Unit, Pre-Lubricated with Grease
Common usage for SBPF200 Pressed Steel Round 3-Bolt Flange Bearing Series consists of: Automotive, Agricultural, Conveyor, Fan Assemblies, Light to Heavy Industrial Use, and Engineering Needs.
Pressed steel housings are made from mild steel strip and are zinc plated. These units provide simple and effective bearing arrangements capable of accommodating moderate misalignment from mounting errors. They are easily mounted onto commercial shafting and are particularly useful where fabricated machine frames are employed.
Match #: BPF12-38, SBPF212-38, ASPF212-038
Product Videos
Custom Field
Inner Diameter 2-3/8"
Outer Diameter 177mm
Width 42mm
Static Load 8,090 lbs
Dynamic Load 11,800 lbs
Housing Material Pressed Steel
Bearing Material Chrome Steel
Lubrication Chevron SRI-2 Grease
Speed Limit 2,800 RPM
Interchange Numbers BPF12-38, SBPF212-38, ASPF212-038
