3 Bolt Flange Bearings

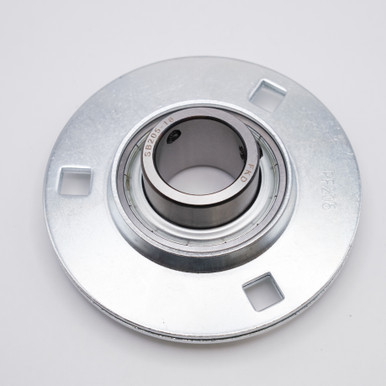

SBPF203 Pressed Steel Three Bolt Flange Set Screw Bearing 17x81x22
- Free shipping on most orders
- Ships from Glendale, CA
Wholesale Pricing
By Quote — Request a Quote
Specifications
Dimensions
| Bore (inner diameter) | 17mm |
|---|---|
| Outer Diameter | 81mm |
| Width | 22mm |
Construction
| Bearing Material | Chrome Steel |
|---|---|
| Housing Material | Pressed Steel |
| Lubrication | Chevron SRI-2 Grease |
Performance
| Static Load | 1,060 lbs |
|---|---|
| Dynamic Load | 2,140 lbs |
| Speed Limit | 8,800 RPM |
Interchange numbers 4
- BPF3
- SBPF203
- RAY 17
- ASPF203
Ordering & returns
Lead time
Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.
Before you order
Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.
Shipping and returns
Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.
Description
SBPF200 Series Press Steel 3 Bolt Round Flange Light Duty Housing with Set Screw Ball Bearing in Unit, Pre-Lubricated with Grease
Common usage for SBPF200 Pressed Steel Round 3-Bolt Flange Bearing Series consists of: Automotive, Agricultural, Conveyor, Fan Assemblies, Light to Heavy Industrial Use, and Engineering Needs.
Pressed steel housings are made from mild steel strip and are zinc plated. These units provide simple and effective bearing arrangements capable of accommodating moderate misalignment from mounting errors. They are easily mounted onto commercial shafting and are particularly useful where fabricated machine frames are employed.
Match #: BPF3, SBPF203, RAY 17, ASPF203
