• SBPF201 Pressed Steel Three Bolt Flange Set Screw Bearing 12x81x22 Disassembled View
  • SBPF201 Pressed Steel Three Bolt Flange Set Screw Bearing 12x81x22 Disassembled View

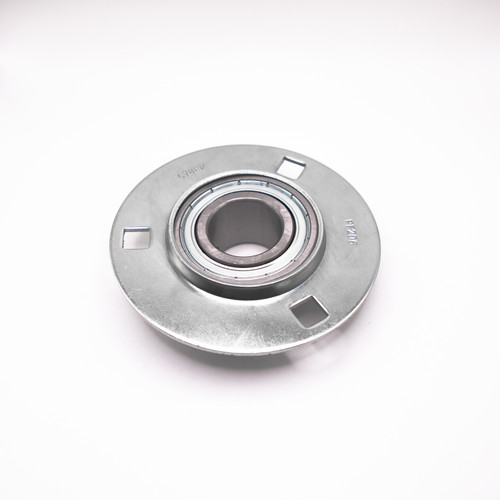

  • SBPF201 Pressed Steel Three Bolt Flange Set Screw Bearing 12x81x22 Front View
  • SBPF201 Pressed Steel Three Bolt Flange Set Screw Bearing 12x81x22 Back View

    • SBPF201 Pressed Steel Three Bolt Flange Set Screw Bearing 12x81x22

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Wholesale Pricing By Quote — Request a Quote
    Write a Review
    SKU:
    SBPF201
    Minimum Purchase:
    100 units
    Inner Diameter:
    12mm
    Outer Diameter:
    81mm
    Width:
    22mm
    Static Load:
    1,060 lbs
    Dynamic Load:
    2,140 lbs
    Housing Material:
    Pressed Steel
    Bearing Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Speed Limit:
    8,800 RPM
    Interchange Numbers:
    BPF-1, RAY-12, ASPF201
    Request a Quote for 100+ Units

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    SBPF200 Series Press Steel 3 Bolt Round Flange Light Duty Housing with Set Screw Ball Bearing in Unit, Pre-Lubricated with Grease

    Common usage for SBPF200 Pressed Steel Round 3-Bolt Flange Bearing Series consists of: Automotive, Agricultural, Conveyor, Fan Assemblies, Light to Heavy Industrial Use, and Engineering Needs.

    Pressed steel housings are made from mild steel strip and are zinc plated. These units provide simple and effective bearing arrangements capable of accommodating moderate misalignment from mounting errors. They are easily mounted onto commercial shafting and are particularly useful where fabricated machine frames are employed.

    Match #: BPF-1, RAY-12, ASPF201

    Product Videos

    Custom Field

    Inner Diameter 12mm
    Outer Diameter 81mm
    Width 22mm
    Static Load 1,060 lbs
    Dynamic Load 2,140 lbs
    Housing Material Pressed Steel
    Bearing Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Speed Limit 8,800 RPM
    Interchange Numbers BPF-1, RAY-12, ASPF201
