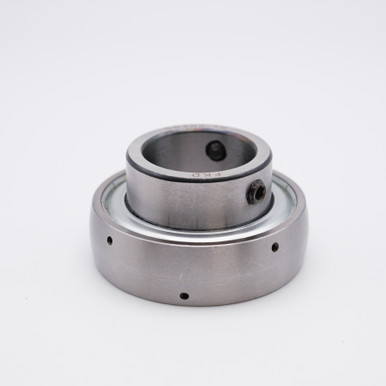

  • SB205-15 Insert Ball Bearing 15/16x52x27 Side View
  • SB205-15 Insert Ball Bearing 15/16x52x27 Front View
  • SB205-15 Insert Ball Bearing 15/16x52x27 Flat View
  • SB205-15 Insert Ball Bearing 15/16x52x27 Back View

    • SB205-15 Insert Ball Bearing 15/16x52x27

    Write a Review
    SKU:
    SB205-15
    Minimum Purchase:
    100 units
    Inner Diameter:
    15/16"
    Outer Diameter:
    52mm
    Inner Race Width:
    15mm
    Outer Race Width:
    27mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    1,750 lbs
    Dynamic Load:
    3,140 lbs
    Speed Limit:
    6,250 RPM
    Interchange Numbers:
    FHS205-15, B5-15, SB205-15N, SB205-15G, AS205-015

    Product Description

    SB200 Bearing Series Set Screw Insert Ball Bearing Sealed and Pre-Lubricated with Grease

    SB200 Insert Bearing Series has a combination of a standard lubrication feature that has a drilled hole in the groove on the locking collar and to make things more efficient the drilled oil hole opposite to the collar to make it interchangeable with the different manufactures. This Insert Bearing is self aligning for standard load capacity.

    Match#: FHS205-15, B5-15, SB205-15N, SB205-15G, AS205-015

    Product Videos

    Custom Field

    Inner Diameter 15/16"
    Outer Diameter 52mm
    Inner Race Width 15mm
    Outer Race Width 27mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Static Load 1,750 lbs
    Dynamic Load 3,140 lbs
    Speed Limit 6,250 RPM
    Interchange Numbers FHS205-15, B5-15, SB205-15N, SB205-15G, AS205-015
