    • SAPP206-20 Pressed Steel Locking Collar Pillow Block Bearing 1-1/4" Bore
  • SAPP206-20 Pressed Steel Locking Collar Pillow Block Bearing 1-1/4" Bore Right Angled View
  • SAPP206-20 Pressed Steel Locking Collar Pillow Block Bearing 1-1/4" Bore Left Angled View
  • SAPP206-20 Pressed Steel Locking Collar Pillow Block Bearing 1-1/4" Bore Front View
  • SAPP206-20 Pressed Steel Locking Collar Pillow Block Bearing 1-1/4" Bore Flat View
  • SAPP206-20 Pressed Steel Locking Collar Pillow Block Bearing 1-1/4" Bore Bottom View
  • SAPP206-20 Pressed Steel Locking Collar Pillow Block Bearing 1-1/4" Bore Right Angled View SAPP206-20 Pressed Steel Locking Collar Pillow Block Bearing 1-1/4" Bore Left Angled View SAPP206-20 Pressed Steel Locking Collar Pillow Block Bearing 1-1/4" Bore Front View SAPP206-20 Pressed Steel Locking Collar Pillow Block Bearing 1-1/4" Bore Flat View SAPP206-20 Pressed Steel Locking Collar Pillow Block Bearing 1-1/4" Bore Bottom View

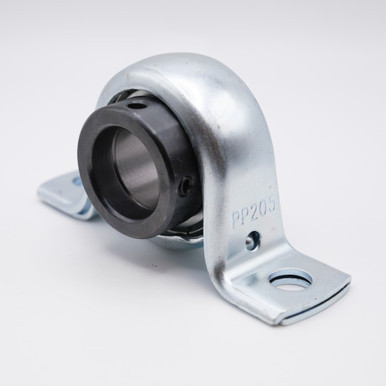

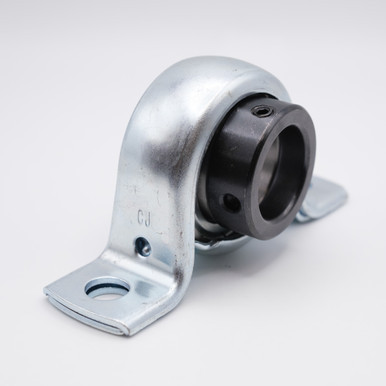

    SAPP206-20 Pressed Steel Locking Collar Pillow Block Bearing 1-1/4" Bore

    (You save )
    Write a Review
    SKU:
    SAPP206-20
    Minimum Purchase:
    50 units
    Bore Size:
    1-1/4"
    Bolt Hole to Bolt Hole:
    3-47/64" (95mm)
    Base to Center:
    1-21/64" (33.3mm)
    Static Load:
    2,500 lbs
    Dynamic Load:
    4,300 lbs
    Housing Material:
    Pressed Steel
    Bearing Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Speed Limit:
    5,300 RPM
    Interchange Numbers:
    KHPP206-20, SSPE-120, P6B-SLX-020, PB-1-1/4, AELPP206-20, FHPPZ206-20, SSP-20E, S-1-1/4FM, PBY-20, SAPP206-20F, SAPP206 1-1/4

    Adding to cart… category.add_cart_announcement
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview

    Product Description

    SAPP200 Bearing Series is Pressed Steel Pillow Block with Eccentric Locking Collar Ball Bearing and Pre-Lubricated

    SAPP200 Pressed Steel Pillow Block Bearing Series has a combination of pressed steel pillow block bearing and light duty eccentric locking collar insert bearing.

    Common usage for SAPP200 Series Pressed Steel Pillow Block include: Agriculture, Automotive, Pump, Sporting, Consumer Goods, Construction, Manufacturing Equipment, Conveyor, Fan Assemblies, Light and Heavy Industrial use.

    Match #: KHPP206-20, SSPE-120, P6B-SLX-020, PB-1-1/4, AELPP206-20, FHPPZ206-20, SSP-20E, S-1-1/4FM, PBY-20, SAPP206-20F, SAPP206 1-1/4

    Product Videos

    Custom Field

    Bore Size 1-1/4"
    Bolt Hole to Bolt Hole 3-47/64" (95mm)
    Base to Center 1-21/64" (33.3mm)
    Static Load 2,500 lbs
    Dynamic Load 4,300 lbs
    Housing Material Pressed Steel
    Bearing Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Speed Limit 5,300 RPM
    Interchange Numbers KHPP206-20, SSPE-120, P6B-SLX-020, PB-1-1/4, AELPP206-20, FHPPZ206-20, SSP-20E, S-1-1/4FM, PBY-20, SAPP206-20F, SAPP206 1-1/4
