Product Description

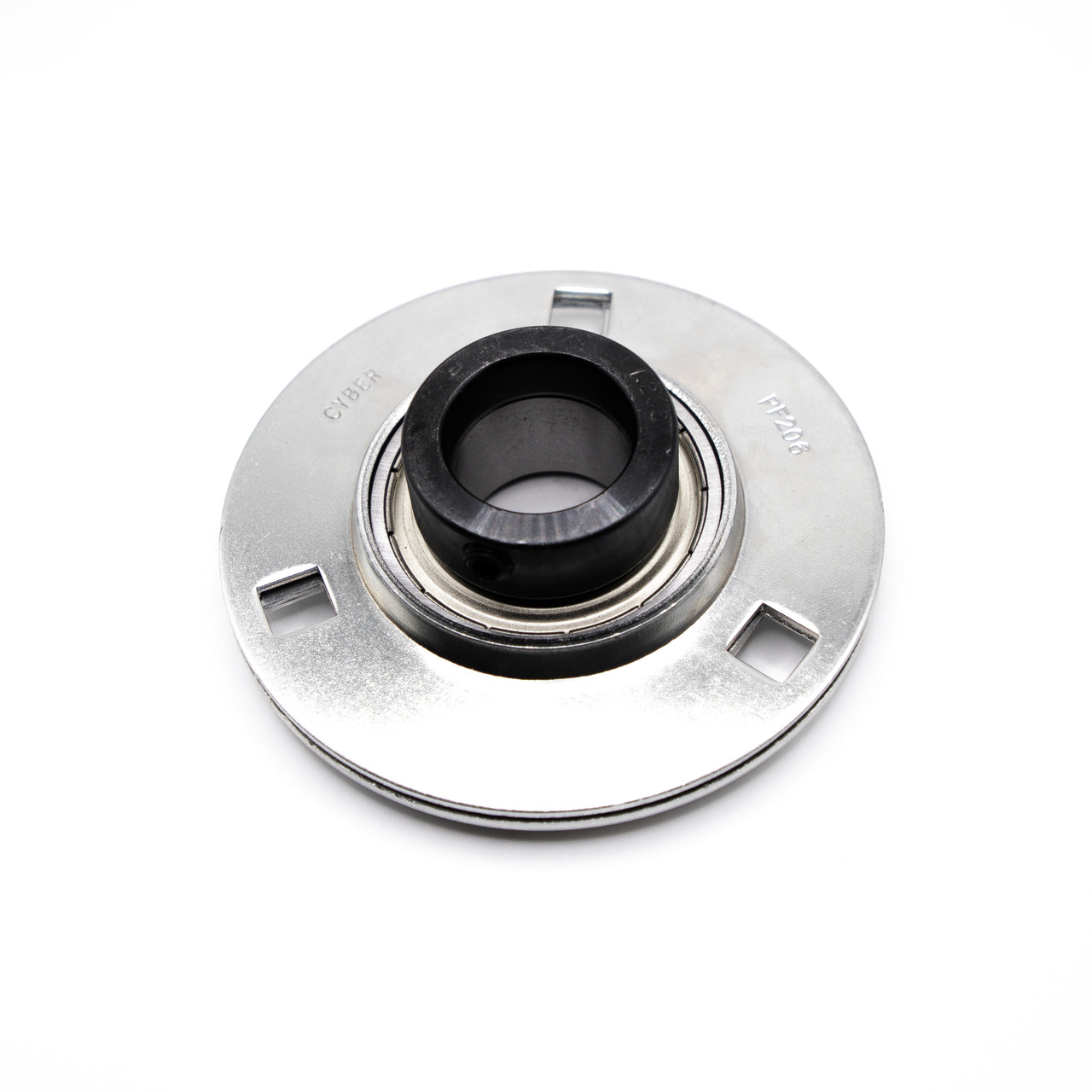

SAPF200 Press Steel 3 Bolt Flange Light Duty Housing with Eccentric Locking Collar Ball Bearing in Unit, Pre Lubricated with Grease
Common usage for SBPF200 Pressed Steel Round 3-Bolt Flange Bearing Series consists of: Automotive, Agricultural, Conveyor, Fan Assemblies, Light to Heavy Industrial Use, and Engineering Needs.
Pressed steel housings are made from mild steel strip and are zinc plated. These units provide simple and effective bearing arrangements capable of accommodating moderate misalignment from mounting errors. They are easily mounted onto commercial shafting and are particularly useful where fabricated machine frames are employed.
Match #: ENPF-210, UBPF-210, JELPF210, SAPF210, KHPFL210, SAPFL210, AELPFL210, FHPFLR210, SSFT-210
Product Videos
Custom Field
Inner Diameter 50mm
Outer Diameter 157mm
Width 43.7mm
Static Load 5,190 lbs
Dynamic Load 7,900 lbs
Housing Material Pressed Steel
Bearing Material Chrome Steel
Lubrication Chevron SRI-2 Grease
Speed Limit 3,400 RPM
Interchange Numbers ENPF-210, UBPF-210, JELPF210, SAPF210, KHPFL210, SAPFL210, AELPFL210, FHPFLR210, SSFT-210
