• SAFTD205-14 Oval Ductile Flange Bearing 7/8" Bore Top View

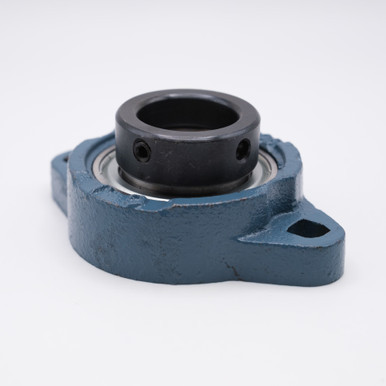

  • SAFTD205-14 Oval Ductile Flange Bearing 7/8" Bore Side View
  • SAFTD205-14 Oval Ductile Flange Bearing 7/8" Bore Side View

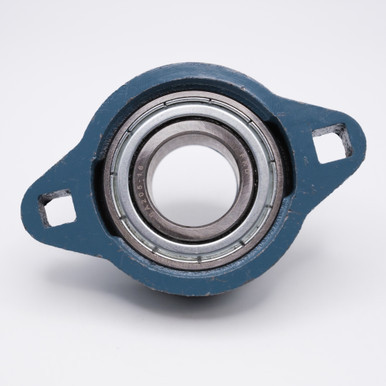

  • SAFTD205-14 Oval Ductile Flange Bearing 7/8" Bore Bottom View

    • SAFTD205-14 Oval Ductile Flange Bearing Shaft Size 7/8 INCH

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    SAFTD205-14
    Minimum Purchase:
    100 units
    Inner Diameter:
    7/8"
    Overall Length:
    95mm
    Overall Height:
    69mm
    Bolt Hole to Bolt Hole:
    76mm
    Housing Material:
    Cast Iron
    Insert Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    1,750 lbf
    Dynamic Load:
    1,400 lbf
    Speed Limit:
    3,500 RPM
    Country of Origin:
    China
    Interchange Numbers:
    VFTD-7/8, GVFTD-7/8, GVFTDR-7/8, RFTD-7/8, RFTDR-7/8, GRFTD-7/8, GRFTDR-7/8, BLFL5-14J, XL2-7/8, VF2E-114M, VF2S-114, SCLFT7/8NL, SCLFT-7/8, FB110x7/8, FB160x7/8, FXR-W214U, FXR-Y214N, FXR-WG214U, FXR-YG214N

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    SAFTD205-14 2-Bolt Flange Bearing Locking Collar Bearing

    Key Features

    SAFTD205-14 is a Cast Iron 2-Bolt Flange Bearing Housing with an Anti-Rotation Device, Grease Feed Access, and an Eccentric Locking Collar Insert Ball Bearing. This unit features a machined collar with a single set screw that, when tightened, secures the position of the eccentric collar onto a shaft. This locking method does less damage to the shaft than a normal set screw locking system and is recommended for most applications except where reversing shaft rotation is involved. This unit has also been equipped with a Grease Feed to allow for re-lubrication if necessary. Our SAFTD205-14 are pre-Lubricated with Grease, ensuring they are ready for immediate use upon delivery.

    Applications/Industries

    SAFTD205-14 2-Bolt Flange Bearings are widely used in various applications such as HVAC Systems, Manufacturing Equipment, Agriculture, Automotives, Conveyor Systems, Film Processing Machinery, Fitness Equipment, Fan Assemblies, Pumps, among others.

    Product Videos

    Custom Field

    Inner Diameter 7/8"
    Overall Length 95mm
    Overall Height 69mm
    Bolt Hole to Bolt Hole 76mm
    Housing Material Cast Iron
    Insert Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 1,750 lbf
    Dynamic Load 1,400 lbf
    Speed Limit 3,500 RPM
    Country of Origin China
    Interchange Numbers VFTD-7/8, GVFTD-7/8, GVFTDR-7/8, RFTD-7/8, RFTDR-7/8, GRFTD-7/8, GRFTDR-7/8, BLFL5-14J, XL2-7/8, VF2E-114M, VF2S-114, SCLFT7/8NL, SCLFT-7/8, FB110x7/8, FB160x7/8, FXR-W214U, FXR-Y214N, FXR-WG214U, FXR-YG214N
