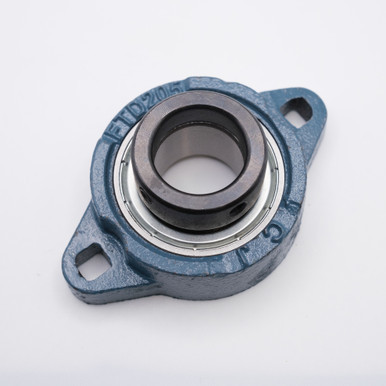

• SAFTD203 Oval Ductile Flange Bearing Shaft Size 17mm Front View

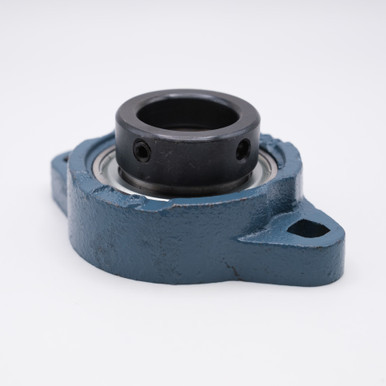

  • SAFTD203 Oval Ductile Flange Bearing Shaft Size 17mm Side View
  • SAFTD203 Oval Ductile Flange Bearing Shaft Size 17mm Side View

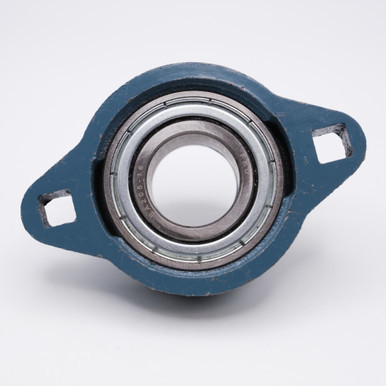

  • SAFTD203 Oval Ductile Flange Bearing Shaft Size 17mm Bottom View

    • SAFTD203 Oval Ductile Flange Bearing Shaft Size 17mm

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    SAFTD203
    Minimum Purchase:
    100 units
    Inner Diameter:
    17mm
    Overall Length:
    81mm
    Overall Height:
    56mm
    Bolt Hole to Bolt Hole:
    64mm
    Housing Material:
    Cast Iron
    Insert Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    1,060 lbf
    Dynamic Load:
    2,140 lbf
    Speed Limit:
    8,800 RPM
    Country of Origin:
    China
    Interchange Numbers:
    VFTD-17, GVFTD-17, GVFTDR-17, RFTD-17, RFTDR-17, GRFTD-17, GRFTDR-17, FXR-U2M17N, FXR-UG2M17N

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    SAFTD203 2-Bolt Flange Bearing Locking Collar Bearing

    Key Features

    SAFTD203 is a Cast Iron 2-Bolt Flange Bearing Housing with an Anti-Rotation Device, Grease Feed Access, and an Eccentric Locking Collar Insert Ball Bearing. This unit features a machined collar with a single set screw that, when tightened, secures the position of the eccentric collar onto a shaft. This locking method does less damage to the shaft than a normal set screw locking system and is recommended for most applications except where reversing shaft rotation is involved. This unit has also been equipped with a Grease Feed to allow for re-lubrication if necessary. Our SAFTD203 are pre-Lubricated with Grease, ensuring they are ready for immediate use upon delivery.

    Applications/Industries

    SAFTD203 2-Bolt Flange Bearings are widely used in various Consumer Goods, HVAC Systems, Manufacturing Equipment, Agriculture, Automotives, Conveyor Systems, Film Processing Machinery, Fitness Equipment, Fan Assemblies, Pumps, among others.

    Product Videos

    Custom Field

    Inner Diameter 17mm
    Overall Length 81mm
    Overall Height 56mm
    Bolt Hole to Bolt Hole 64mm
    Housing Material Cast Iron
    Insert Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 1,060 lbf
    Dynamic Load 2,140 lbf
    Speed Limit 8,800 RPM
    Country of Origin China
    Interchange Numbers VFTD-17, GVFTD-17, GVFTDR-17, RFTD-17, RFTDR-17, GRFTD-17, GRFTDR-17, FXR-U2M17N, FXR-UG2M17N
