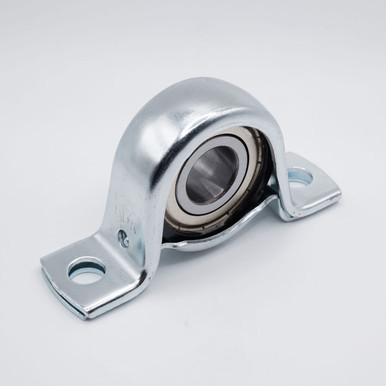

  • RSBPP206-19 Pressed Steel AC Bearing Unit 1-3/16" Bore Back Left Angled View

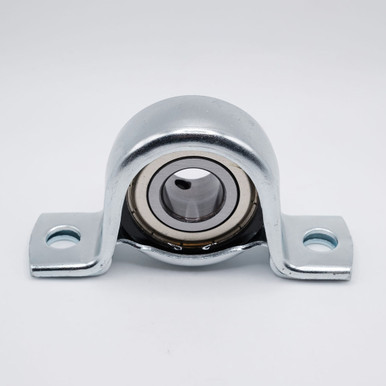

  • RSBPP206-19 Pressed Steel AC Bearing Unit 1-3/16" Bore Back View
  • RSBPP206-19 Pressed Steel AC Bearing Unit 1-3/16" Bore Bottom View

    • RSBPP206-19 Pressed Steel AC Bearing Unit 1-3/16" Bore

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    RSBPP206-19
    Minimum Purchase:
    100 units
    Inner Diameter:
    1-3/16"
    Overall Length:
    130mm
    Overall Height:
    78.2mm
    Bolt Hole to Bolt Hole:
    106mm
    Base to Center:
    39.7mm
    Housing Material:
    Pressed Steel
    Insert Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    2,570 lbf
    Dynamic Load:
    4,377 lbf
    Speed Limit:
    5,300 RPM
    Country of Origin:
    China
    Interchange Numbers:
    RSBPP206-19

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    RSBPP206-19 Pressed Steel AC Bearing Unit

    Key Features

    RSBPP206-19 is a Pressed Steel AC Bearing Unit with Set Screws for locking onto a shaft. This bearing features an HVAC Rubber Cushioned Insert Ball Bearing with two set screws located on the extended inner ring of the bearing. This bearing is ideal for applications in HVAC Systems due to its ability to reduce vibration and is pre-lubricated with grease, ensuring it is ready for immediate use upon delivery.

    Applications / Industry

    RSBPP206-19 Press Steel AC Bearing Units are used in a variety of applications such as HVAC Systems, Air Conditioning Units, Industrial Fans, Centrifugal Blowers, Automotive Compressors, Air Handling Units, among others.

    Product Videos

    Custom Field

    Inner Diameter 1-3/16"
    Overall Length 130mm
    Overall Height 78.2mm
    Bolt Hole to Bolt Hole 106mm
    Base to Center 39.7mm
    Housing Material Pressed Steel
    Insert Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 2,570 lbf
    Dynamic Load 4,377 lbf
    Speed Limit 5,300 RPM
    Country of Origin China
    Interchange Numbers RSBPP206-19
