    • R24-2RS Miniature Ball Bearing 1-1/2x2-5/8x9/16
  • R24-2RS Miniature Ball Bearing 1-1/2x2-5/8x9/16 Side View
  • R24-2RS Miniature Ball Bearing 1-1/2x2-5/8x9/16 Front View
  • R24-2RS Miniature Ball Bearing 1-1/2x2-5/8x9/16 Front View
  • R24-2RS Miniature Ball Bearing 1-1/2x2-5/8x9/16 Side View R24-2RS Miniature Ball Bearing 1-1/2x2-5/8x9/16 Front View R24-2RS Miniature Ball Bearing 1-1/2x2-5/8x9/16 Front View

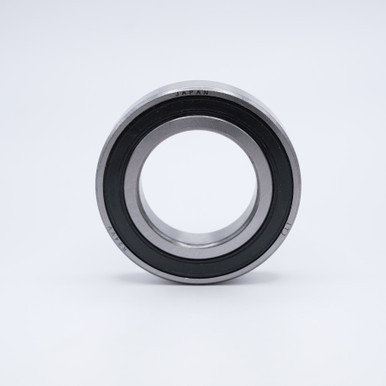

    R24-2RS Miniature Ball Bearing 1-1/2x2-5/8x9/16

    (You save )
    Write a Review
    SKU:
    R24-2RS
    Minimum Purchase:
    50 units
    Inner Diameter:
    1-1/2”
    Outer Diameter:
    2-5/8”
    Width:
    9/16”
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Interchange Numbers:
    R24-2RS, R-24RS, R24FF, S13PP, R-24.2RS, R24RS, EE13S-2RS, R24DDU, R24LLB, R24.2RSJ1, 99R24
    Static Load:
    582 lbs
    Dynamic Load:
    848 lbs
    Grease RPM Limit:
    6,900 RPM
    Oil RPM Limit:
    10,000 RPM

    Adding to cart… category.add_cart_announcement
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview

    Product Description

    R24-2RS is a Precision Radial Ball Bearing with Both Sides Rubber Sealed and Pre-Lubricated with Grease

    R24-2RS Series Single Row Radial Ball Bearings are made of chrome steel, pre-lubricated with grease and has rubber seals on both sides to protect the bearings from dust or any other types of possible contamination.

    The R Series Radial Ball Bearings have a combination of an inner and outer ring with a cage containing a complement of precision balls. The R Series Single Row Radial Ball Bearings are used in the following: axial fans, clutch, drive axles, idler wheels, electric motors, roller skates, skateboards, snow mobiles, fishing reel, equipment, conveyor and many other industrial machines.

    Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed and Shielded bearings are lubricated with oil or grease in the bearing factory, while open bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, electric motors, CNC machinery, trucks, mining equipment, train, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

    Match #: R24-2RS, R-24RS, R24FF, S13PP, R-24.2RS, R24RS, EE13S-2RS, R24DDU, R24LLB, R24.2RSJ1, 99R24

    Product Videos

    Custom Field

    Inner Diameter 1-1/2”
    Outer Diameter 2-5/8”
    Width 9/16”
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Interchange Numbers R24-2RS, R-24RS, R24FF, S13PP, R-24.2RS, R24RS, EE13S-2RS, R24DDU, R24LLB, R24.2RSJ1, 99R24
    Static Load 582 lbs
    Dynamic Load 848 lbs
    Grease RPM Limit 6,900 RPM
    Oil RPM Limit 10,000 RPM
