• POSB10L Rod-End Bearing Left Hand Rod1.5/8 x Bore 5/8 Top View

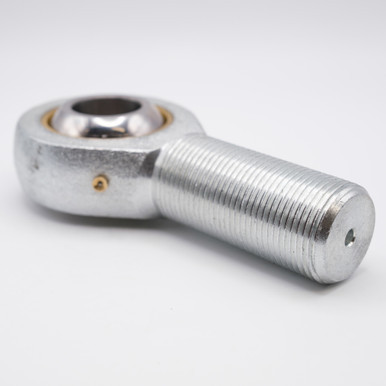

  • POSB10L Rod-End Bearing Left Hand Rod1.5/8 x Bore 5/8 Side View
  • POSB10L Rod-End Bearing Left Hand Rod1.5/8 x Bore 5/8 Front View

    • POSB10L Pilloball Male Rod End Bearing Left Hand Thread 5/8" Bore

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    POSB10L
    Minimum Purchase:
    100 units
    Bore Size:
    5/8" (15.875mm)
    Base to Center:
    2-5/8" (66.68mm)
    Thread:
    -18UNC ( .6250")
    Overall Height:
    3-3/8" (85.73mm)
    Outer Diameter:
    1-1/2" (38.10mm)
    Static Load:
    8,835 lbs
    Dynamic Load:
    4,496 lbs
    Ball Material:
    Chrome Steel
    Housing Material:
    Nickel Plated
    Interchange Numbers:
    HML10, HML10G, TREL-10, TREL10N, TREL-10N, MB-10, MB-10Z, POSB10LZ
    Thread Direction:
    Left Hand

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    POSB10L Bearing is a Rod End PilloBall Insert Bearing, Left Handed Thread and Zinc Plated

    Match #: HML10, HML10G, TREL-10, TREL10N, TREL-10N, MB-10, MB-10Z, POSB10LZ

    Product Videos

    Custom Field

    Bore Size 5/8" (15.875mm)
    Base to Center 2-5/8" (66.68mm)
    Thread -18UNC ( .6250")
    Overall Height 3-3/8" (85.73mm)
    Outer Diameter 1-1/2" (38.10mm)
    Static Load 8,835 lbs
    Dynamic Load 4,496 lbs
    Ball Material Chrome Steel
    Housing Material Nickel Plated
    Interchange Numbers HML10, HML10G, TREL-10, TREL10N, TREL-10N, MB-10, MB-10Z, POSB10LZ
    Thread Direction Left Hand
