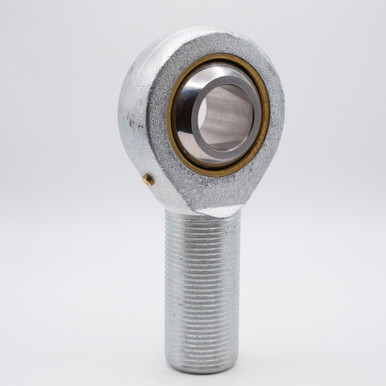

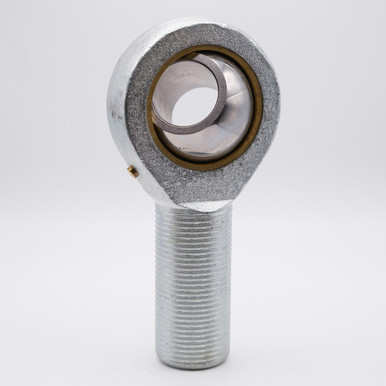

    • POS16EC 16mm Maintenance-Free Type Pilloball Male Rod End Bearing Right Hand Thread

    Write a Review
    SKU:
    POS16EC
    Minimum Purchase:
    50 units
    Bore Size:
    16mm
    Base to Center:
    2-19/32" (66mm)
    Thread:
    M16x2
    Overall Height:
    3-11/32" (85mm)
    Outer Diameter:
    1-1/2" (38mm)
    Static Load:
    4,743 lbs
    Dynamic Load:
    9,442 lbs
    Thread Direction:
    Right Hand

    Product Description

    This type has superior anti-corrosion properties as the body is zinc chromate treated and the spherical inner ring is chromium plated on the sphere surface after heat treatment and grinding.

    A special PTFE liner, reinforced with copper alloy meshes, which is superior in anti-wear properties with little creep deformation is used for lining on the sliding surface of the body, and this type is maintenance- free.

    POS16EC, which has a male thread on the body, is available.

    Product Videos

    Custom Field

    Bore Size 16mm
    Base to Center 2-19/32" (66mm)
    Thread M16x2
    Overall Height 3-11/32" (85mm)
    Outer Diameter 1-1/2" (38mm)
    Static Load 4,743 lbs
    Dynamic Load 9,442 lbs
    Thread Direction Right Hand
