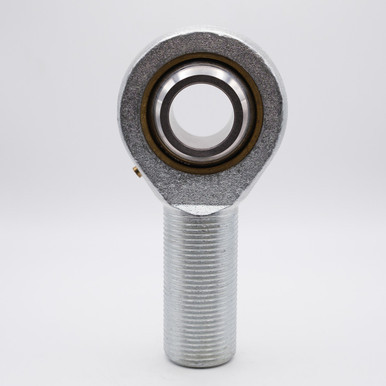

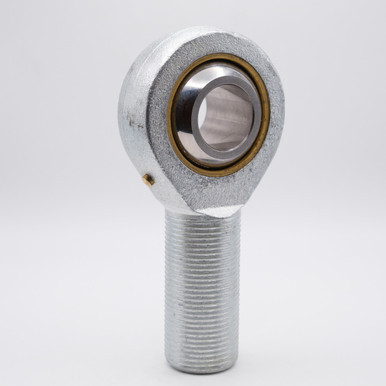

    POS10ECL 10mm Maintenance-Free Type Pilloball Male Rod End Bearing Left Hand Thread

    (You save )
    (No reviews yet) Write a Review
    SKU:
    POS10ECL
    Minimum Purchase:
    50 units
    Bore Size:
    10mm
    Base to Center:
    1-57/64" (48mm)
    Thread:
    M10x1.5
    Overall Height:
    2-13/32" (61mm)
    Outer Diameter:
    1-1/32" (26mm)
    Static Load:
    2,360 lbs
    Dynamic Load:
    4,406 lbs
    Thread Direction:
    Left Hand

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

    This type has superior anti-corrosion properties as the body is zinc chromate treated and the spherical inner ring is chromium plated on the sphere surface after heat treatment and grinding.

    A special PTFE liner, reinforced with copper alloy meshes, which is superior in anti-wear properties with little creep deformation is used for lining on the sliding surface of the body, and this type is maintenance- free.

    POS10ECL, which has a male thread on the body, is available.

    Product Videos

    Custom Field

    Bore Size 10mm
    Base to Center 1-57/64" (48mm)
    Thread M10x1.5
    Overall Height 2-13/32" (61mm)
    Outer Diameter 1-1/32" (26mm)
    Static Load 2,360 lbs
    Dynamic Load 4,406 lbs
    Thread Direction Left Hand
