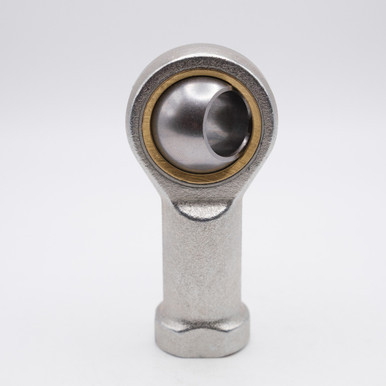

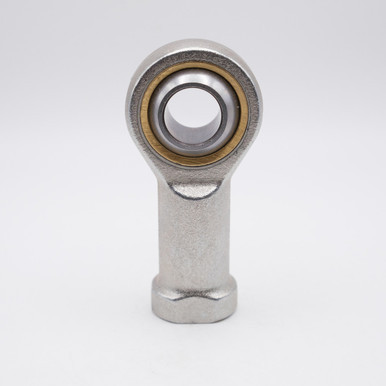

    PHSA8L 8mm PilloBall Female Rod End Bearing Die-Cast Type Left Hand Thread

    (You save )
    Write a Review
    SKU:
    PHSA8L
    Minimum Purchase:
    50 units
    Bore Size:
    8mm
    Base to Center:
    1-27/64" (36mm)
    Thread:
    M8x1.25
    Overall Height:
    1-57/64" (48mm)
    Outer Diameter:
    15/16" (24mm)
    Static Load:
    2,293 lbs
    Thread Direction:
    Left Hand

    Adding to cart… category.add_cart_announcement
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview

    Product Description

    The spherical inner ring of this type is mirror-finished after heat treatment and is built in a body of die-cast special zinc alloy. The sliding surfaces of the inner ring and body are in close contact with each other. Thus, this type is an economical rod end with superior anti-wear and loading properties.



    Product Videos

    Custom Field

    Bore Size 8mm
    Base to Center 1-27/64" (36mm)
    Thread M8x1.25
    Overall Height 1-57/64" (48mm)
    Outer Diameter 15/16" (24mm)
    Static Load 2,293 lbs
    Thread Direction Left Hand
