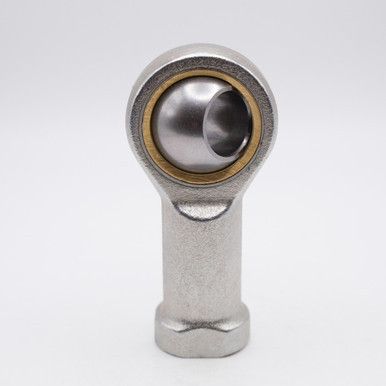

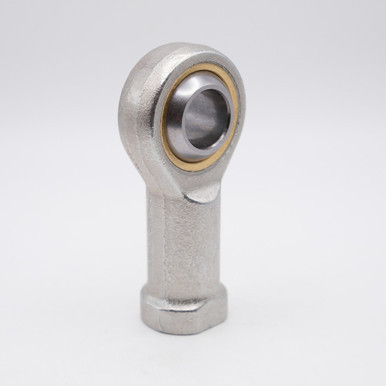

    PHS6ECL 6mm Maintenance-Free Type Pilloball Female Rod End Bearing Left Hand Thread

    (You save )
    Write a Review
    SKU:
    PHS6ECL
    Minimum Purchase:
    50 units
    Bore Size:
    6mm
    Base to Center:
    1-3/16" (30mm)
    Thread:
    M6x1
    Overall Height:
    1-17/32" (39mm)
    Outer Diameter:
    45/64" (18mm)
    Static Load:
    1,111 lbs
    Dynamic Load:
    1,891 lbs
    Thread Direction:
    Left Hand

    Adding to cart… category.add_cart_announcement
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview

    Product Description

    This type has superior anti-corrosion properties as the body is zinc chromate treated and the spherical inner ring is chromium plated on the sphere surface after heat treatment and grinding.

    A special PTFE liner, reinforced with copper alloy meshes, which is superior in anti-wear properties with little creep deformation is used for lining on the sliding surface of the body, and this type is maintenance-free.

    PHS6ECL, which has a female thread in the body, is available.

    Product Videos

    Custom Field

    Bore Size 6mm
    Base to Center 1-3/16" (30mm)
    Thread M6x1
    Overall Height 1-17/32" (39mm)
    Outer Diameter 45/64" (18mm)
    Static Load 1,111 lbs
    Dynamic Load 1,891 lbs
    Thread Direction Left Hand
