Product Description

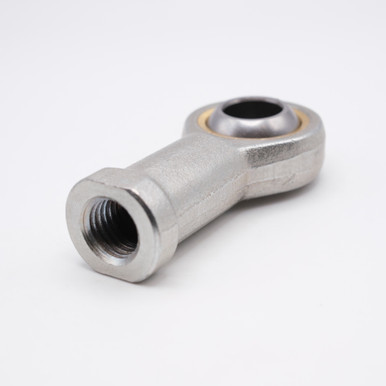

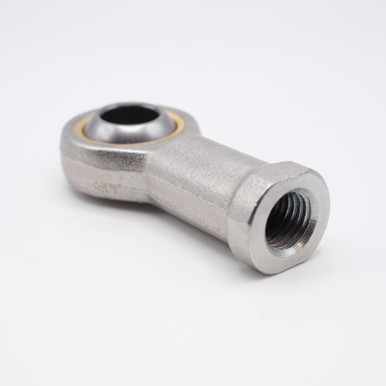

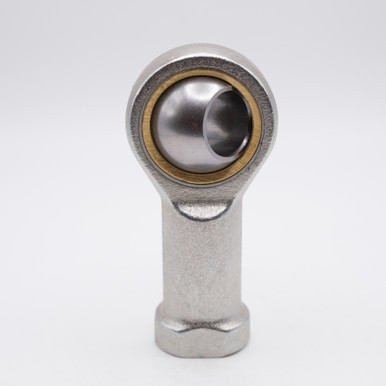

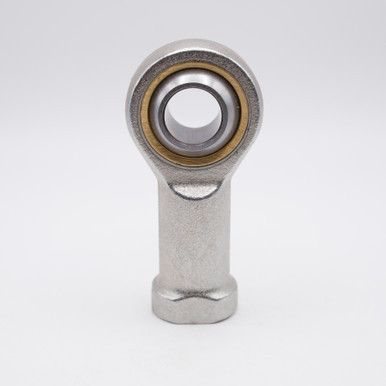

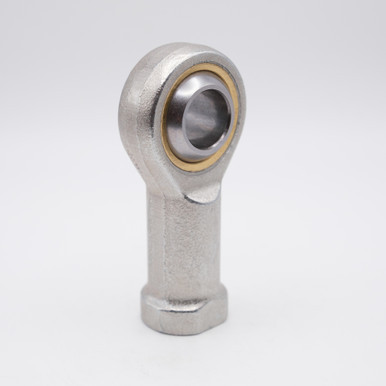

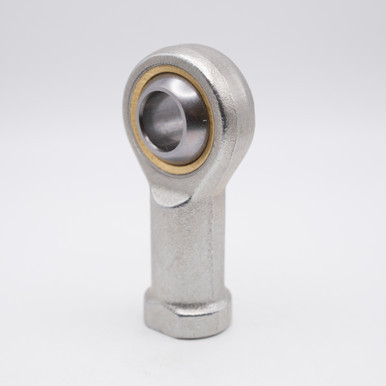

PHS20L rod-end bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. GIKR20-PBL bearing consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank. CW-M20L Rod end bearings are used in applications such as steering linkages, agricultural machinery, and textile manufacturing equipment, among others.
Match#: GIKR20-PBL, SIKOC20ML, CG-M20, MG-M20, AG-M20, PHSA20L
Product Videos
Custom Field
Bore Size 20mm
Base to Center 77mm
Thread M20x1.5
Overall Height 100mm
Outer Diameter 46mm
Static Load 7,981 lbs
Dynamic Load 6,924 lbs
Thread Direction Left Hand
Interchange Numbers GIKR20-PBL, SIKOC20ML, CG-M20, MG-M20, AG-M20, PHSA20L
