Product Description
This type has superior anti-corrosion properties as the body is zinc chromate treated and the spherical inner ring is chromium plated on the sphere surface after heat treatment and grinding.
A special PTFE liner, reinforced with copper alloy meshes, which is superior in anti-wear properties with little creep deformation is used for lining on the sliding surface of the body, and this type is maintenance-free.

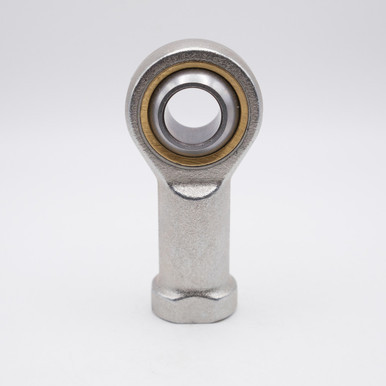

PHS16ECL, which has a female thread in the body, is available.
Product Videos
Custom Field
Bore Size 16mm
Base to Center 2-33/64" (64mm)
Thread M16x2
Overall Height 3-17/64" (83mm)
Outer Diameter 1-1/2" (38mm)
Static Load 4,743 lbs
Dynamic Load 9,442 lbs
Thread Direction Left Hand
