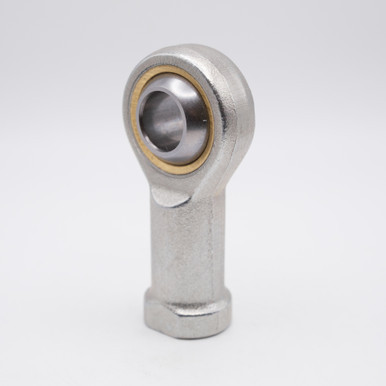

• PHS12L Rod-End Bearing 12mm Bore Right Angled View

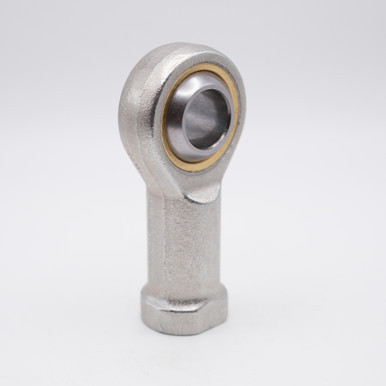

  • PHS12L Rod-End Bearing 12mm Bore Left Angle View
  • PHS12L Rod-End Bearing 12mm Bore Front View

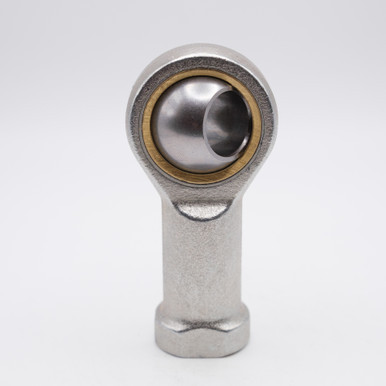

  • PHS12L Rod-End Bearing 12mm Bore Angled Bore View

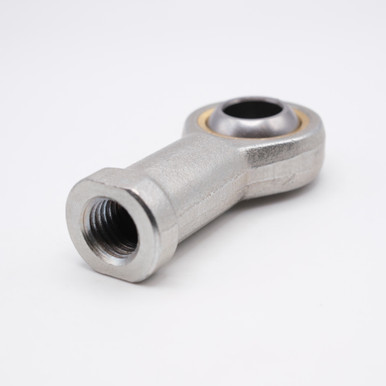

  • PHS12L Rod-End Bearing 12mm Bore Flat Right Angled View
  • PHS12L Rod-End Bearing 12mm Bore Flat Left Angled View
  • PHS12L Rod-End Bearing 12mm Bore Bottom View

    • PHS12L 12mm Lubrication Type PilloBall Female Rod End Bearing Left Hand Thread

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    PHS12L
    Minimum Purchase:
    100 units
    Inner Diameter:
    12mm
    Base to Center:
    50mm
    Thread Size:
    M12x1.75
    Overall Height:
    65mm
    Outer Diameter:
    30mm
    Static Load:
    3,799 lbs
    Dynamic Load:
    2,945 lbs
    Thread Direction:
    Left Hand
    Interchange Numbers:
    GIKR12-PBL, SIKOC12ML, CG-M12, MG-M12, AG-M12, PHSA12L

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    PHS12L rod-end bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. GIKR12-PBL bearing consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank. CW-M12L Rod end bearings are used in applications such as steering linkages, agricultural machinery, and textile manufacturing equipment, among others.

    Match#: GIKR12-PBL, SIKOC12ML, CG-M12, MG-M12, AG-M12, PHSA12L

    Product Videos

    Custom Field

    Inner Diameter 12mm
    Base to Center 50mm
    Thread Size M12x1.75
    Overall Height 65mm
    Outer Diameter 30mm
    Static Load 3,799 lbs
    Dynamic Load 2,945 lbs
    Thread Direction Left Hand
    Interchange Numbers GIKR12-PBL, SIKOC12ML, CG-M12, MG-M12, AG-M12, PHSA12L
