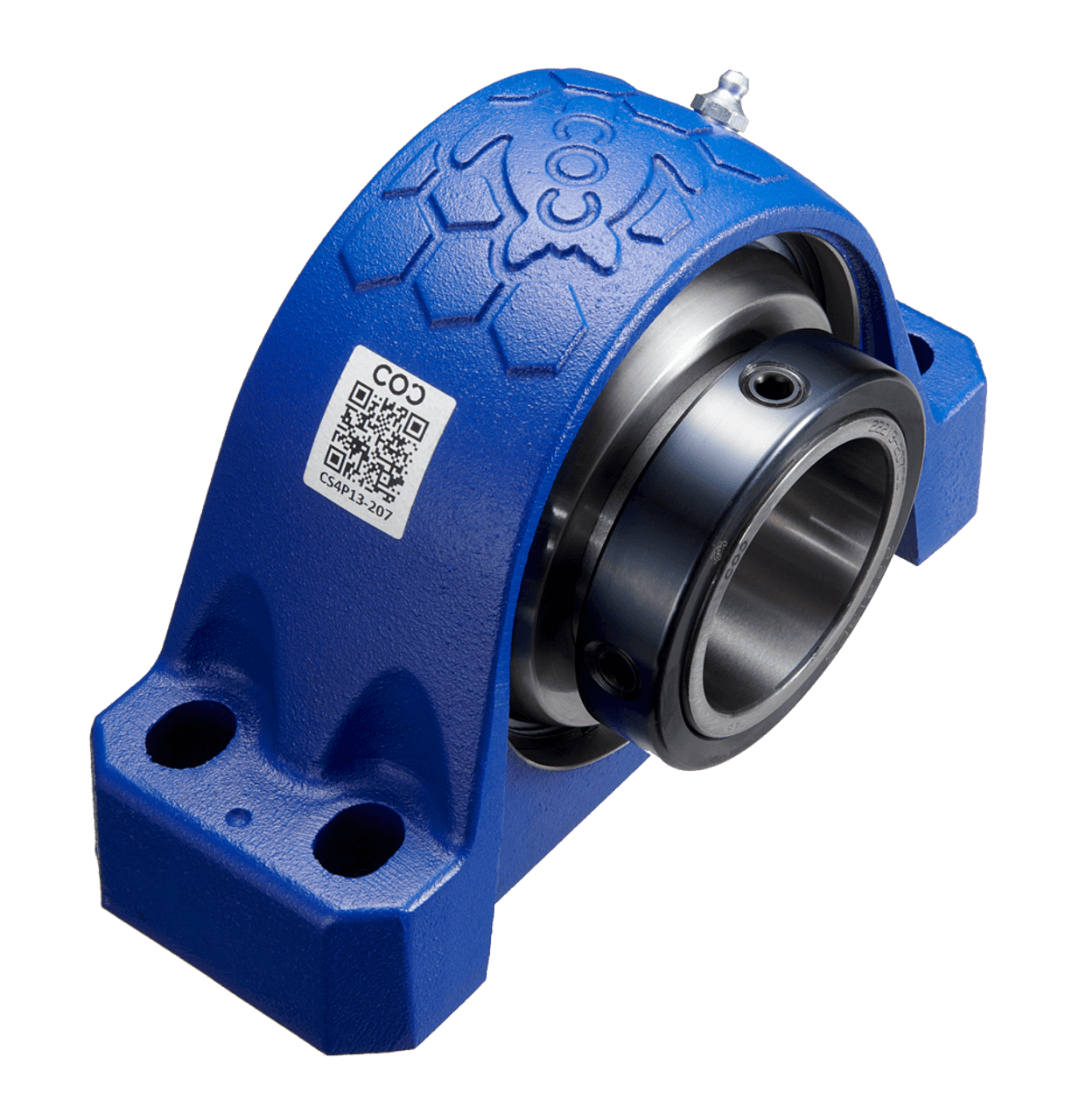

• PB224M100F 4-Bolt Set Screw Pillow Block Bearing 100mm Bore Side View
  • PB224M100F 4-Bolt Set Screw Pillow Block Bearing 100mm Bore Top View

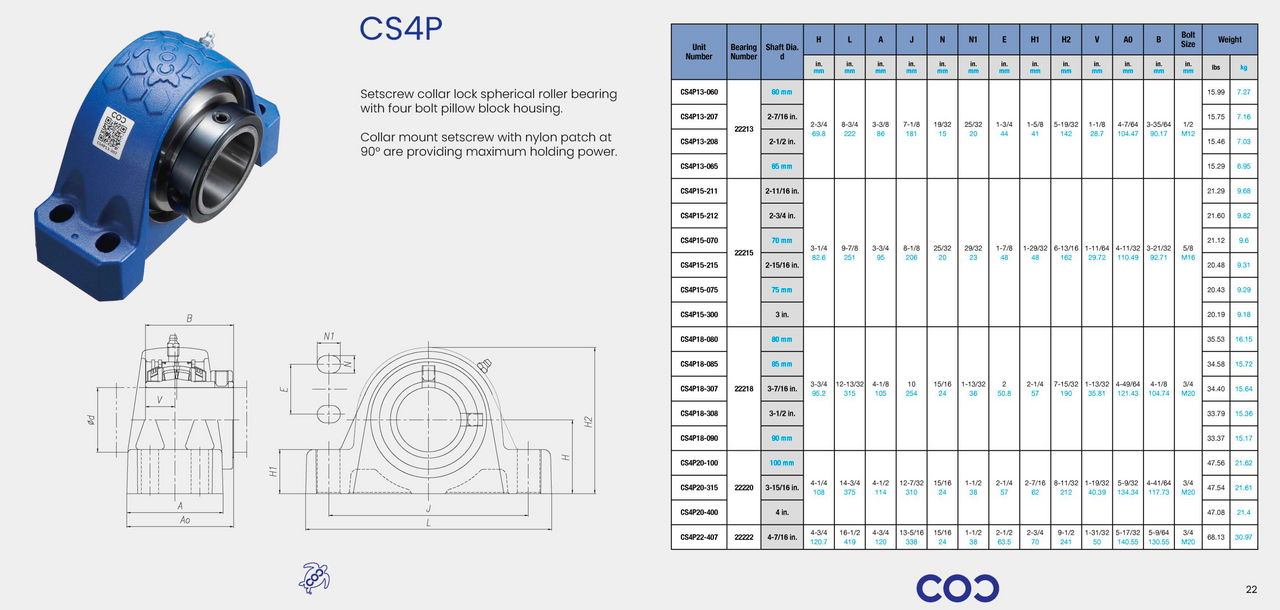

  • PB224M100F 4-Bolt Set Screw Pillow Block Bearing 100mm Bore Specification Sheet
  • PB224M100F 4-Bolt Set Screw Pillow Block Bearing 100mm Bore Roller View

    • PB224M100F 4-Bolt Set Screw Pillow Block Bearing Replacement 100mm Bore CS4P20-100

    Minimum Order: 1 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Wholesale Pricing By Quote — Request a Quote
    Write a Review
    SKU:
    CS4P20-100
    Minimum Purchase:
    1 unit
    Inner Diameter:
    100mm
    Bolt Hole to Bolt Hole:
    12-7/32" (310mm)
    Base to Center:
    4-1/4" (108mm)
    Static Load:
    105,885 lbs
    Dynamic Load:
    83,404 lbs
    Housing Material:
    Cast Iron
    Bearing Material:
    Chrome Steel SAE-52100
    Lubrication:
    Lithium Complex Grease
    Speed Limit:
    2,500 RPM
    Interchange Numbers:
    PB224M100F, QAPF20A100S, 19241100, SR2-PB4-100MMNE, XS4P420, CS4P20-100
    Request a Quote for 1+ Units

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    CS4P20-100 is a Set Screw Locking 4-Bolt Cast Iron Spherical Roller Pillow Block Bearing that has been pre-lubricated with lithium complex grease and features an innovative new design to accomodate thermal expansion.

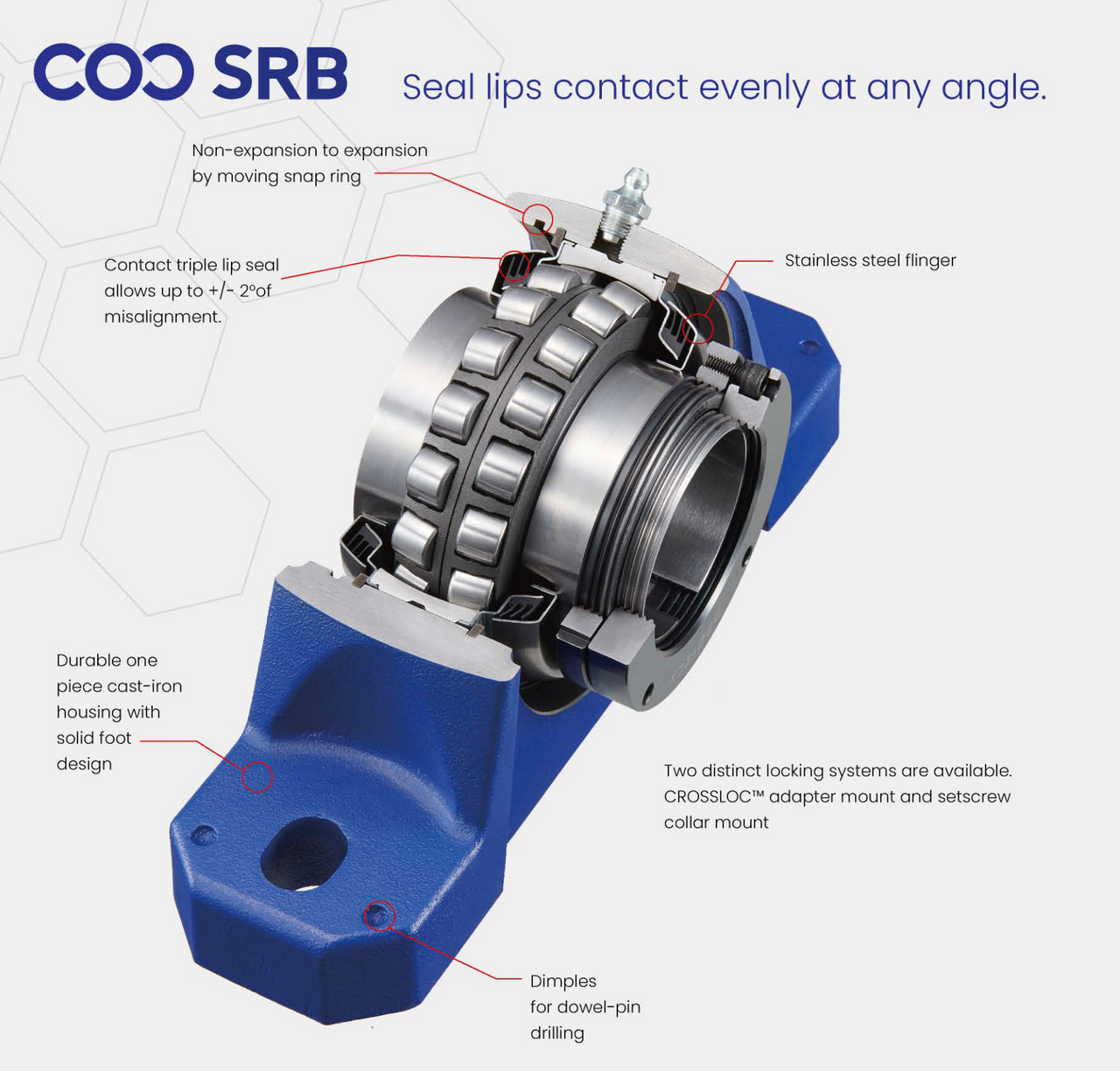

    Experience superior performance with the CS4P20-100 bearing, a cutting-edge solution designed for maximum grip force without compromising shaft integrity. This bearing features a set screw locking collar with a 90 degree nylon patch, providing maximum holding power. Its triple lip seal, paired with a stainless steel flinger, adapts to shaft misalignment while providing unrivaled protection against contamination. Engineered for versatility, this bearing effortlessly transitions between non-expansion and expansion configurations, offering enhanced adaptability. With a built-in grease feed, the CS4P20-100 allows for convenient relubrication, outperforming older models and serving as an ideal replacement for select Dodge and Timken bearings. Upgrade your application with this advanced solution for unmatched reliability and efficiency.

    Interchange: PB224M100F, QAPF20A100S, 19241100, SR2-PB4-100MMNE, XS4P420, CS4P20-100

    Product Videos

    Custom Field

    Inner Diameter 100mm
    Bolt Hole to Bolt Hole 12-7/32" (310mm)
    Base to Center 4-1/4" (108mm)
    Static Load 105,885 lbs
    Dynamic Load 83,404 lbs
    Housing Material Cast Iron
    Bearing Material Chrome Steel SAE-52100
    Lubrication Lithium Complex Grease
    Speed Limit 2,500 RPM
    Interchange Numbers PB224M100F, QAPF20A100S, 19241100, SR2-PB4-100MMNE, XS4P420, CS4P20-100
