Product Description

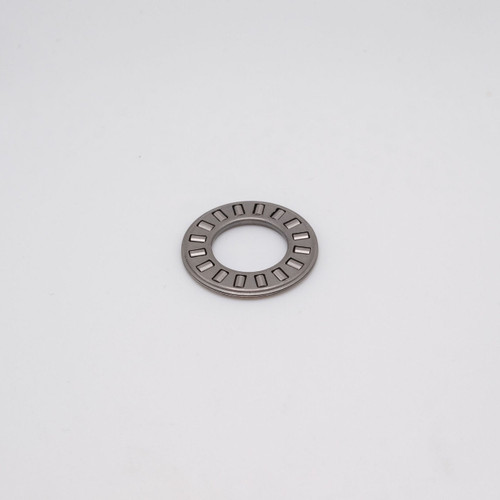

NTA-series is thrust caged needle roller bearing designed for use with TRB-series thrust washer and cage assemblies in applications where adjacent components cannot serve as raceways. This thrust washer serves as a raceway surface for the thrust assembly’s rolling elements and can be used as a shaft washer (bore-piloting washer) fixed on the shaft or a housing washer (outer diameter-piloting washer) fixed in the housing. Both sides of the washer can be used as raceways and are flush ground for higher speeds and greater running accuracy than unground raceways. The washer is made of low alloy, through-hardened chromium steel for durability, heat tolerance, and resistance to deformity under heavy loads. This thrust washer is for use in various applications including machine tool drive shafts, automotive steering gears and clutches, rotary tables, outboard motor propellers, and household appliances.
Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.
Needle roller bearings are a type of roller bearings and are classified as either radial or thrust depending on the direction of the load they support. Needle roller bearings include bearings whose rollers slightly exceed the size range of needle rollers as stipulated by ISO. Needle roller bearings include drawn cup, solid radial bearings, and thrust needle bearings. Needle Roller bearings are available in two types: caged and full complement. Drawn cup outer rings are made of carefully selected alloy steel sheet. They are surface-hardened alter precise pressing, giving them a unique structure. The cage of the needle bearing accurately guides the rollers at the pitch diameter of the rollers. The surface of the cage is hardened to reduce frictional torque and increase rigidity and wear resistance.
Match#: NTA-815, NTA815
