| Bore (inner diameter) | 15mm |
|---|---|
| Outer Diameter | 35mm |
| Width | 19mm |
| Closure Type | Rubber Sealed |
|---|---|
| Material | Chrome Steel SAE-52100 |
| Lubrication | Light Oil |
| Country of Origin | China |
| Static Load | 8,183 lbs |
|---|---|
| Dynamic Load | 5,665 lbs |
| Speed Limit | 2,800 RPM |
Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.
Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.
Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

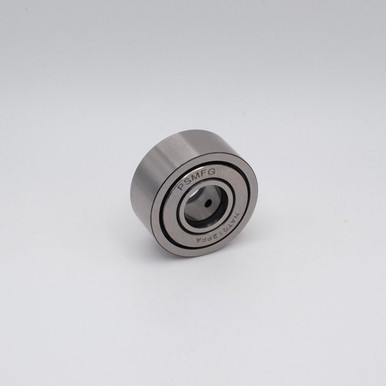

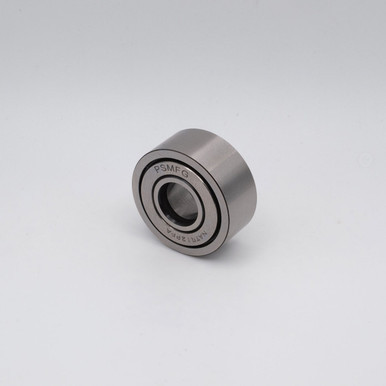

NART15UUR bearing is Precision Yoke Track Needle Roller Bearings are Rubber Sealed on both sides and is pre-lubricated with Light Oil to allow it to be ready to use upon arrival.
Sizes: ID 15mm x OD 35mm x W 19mm = ID 0.59055" x OD 1.37795" x W 0.748032" Inches
Interchange: NATR15PP, MCYRR15S, MYR15S, FYCJS15R, CXM15UURM, FG1535EE, NART15LL, NART15-UUR
Applications: NART15UUR Yoke Track Needle Roller Bearings have a broad range of linear and motion translation applications including Process Transfer Lines, Ram Support Rollers, Conveyors, Machine Tools, and Indexing Equipment. Some of their most common applications include Agricultural Machinery, Conveying Equipment, Cam Drives, Material Handling Equipment, Robotics, and Automotive Equipment, among others.
This NART15LL series features a high load-carrying capability while minimizing both distribution and bending stresses and enables the bearing to handle heavy rolling and shock loads
