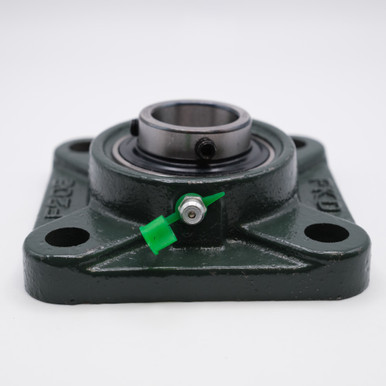

  • NAF208-24 Four Bolt Flange Mounted Bearing 1-1/2" Bore
  • NAF208-24 Four Bolt Flange Mounted Bearing 1-1/2" Bore

    (You save )
    (No reviews yet) Write a Review
    SKU:
    NAF208-24
    Minimum Purchase:
    100 units
    Bore Size:
    1-1/2"
    Bolt Hole to Bolt Hole:
    4-1/64" (102mm)
    Static Load:
    3,960 lbs
    Dynamic Load:
    6,375 lbs
    Housing Material:
    Cast Iron
    Bearing Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Speed Limit:
    4,000 RPM

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

    NAF200 Series is a 4 Bolt Flange Bearing Housing with Set Screw Bearing in Unit, Pre-Lubricated with Grease and Grease Feeding Access

    Common usage for NAF200 Series Four Bolt Flanged Bearing include: Agriculture, Automotive, Construction, Pump, Manufacturing Equipment, Sporting and Consumer Goods, Conveyor and Fan Assemblies, Farm Machinery, HVAC, Feed Mill, Economical housed bearing solution and many other Industrial Equipment.

    Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations; mounted bearings can be one or two pieces. They can have an extended inner ring and locking device and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block) and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.

    Product Videos

    Custom Field

    Bore Size 1-1/2"
    Bolt Hole to Bolt Hole 4-1/64" (102mm)
    Static Load 3,960 lbs
    Dynamic Load 6,375 lbs
    Housing Material Cast Iron
    Bearing Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Speed Limit 4,000 RPM
