Machined Needle Roller Bearings

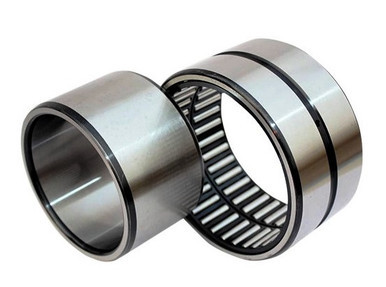

NA6908UU Sealed Needle Roller Bearing 40x62x41 Removable Inner Ring

SKU: NA6908UU
  • Free shipping on most orders
  • Ships from Glendale, CA
  • NA6908UU bearing roller NA6908-2RS
  • NA6908UU Sealed Needle Roller Bearing 40x62x41
  • NA6908UU Sealed Needle Roller Bearing
  • NA6908LL needle roller NA6908TT
  • NA6908UU Sealed Needle Roller Bearing 40x62x41 Removable Inner Ring
  • NA6908UU bearing drawing

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)40mm
    Outer Diameter62mm
    Width41mm

    Construction

    Closure TypeRubber Sealed
    MaterialChrome Steel SAE-52100
    LubricationLight Oil
    Country of OriginChina

    Performance

    Static Load16,635 lbs
    Dynamic Load26,077 lbs
    Speed Limit4,000 RPM

    Interchange numbers 6

    • NA6908-2RSR
    • NA6908-2RS
    • NA6908LL
    • NA6908UU
    • NA-6908UU
    • NA6908TT
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    NA6908UU bearing is Precision Machined Needle Roller Bearing with Inner Ring and Rubber Sealed in complete Set and pre-lubricated with light oil to allow them to be ready to use upon arrival.

    Sizes: ID 40mm x OD 62mm x L 41mm = ID 1.5748" x OD 2.441" x L 1.6142" Inches

    Interchange : NA6908-2RSR, NA6908-2RS, NA6908LL, NA6908UU, NA-6908UU, NA6908TT

    Boundary Dimensions in mm Basic Dynamic Load Basic Static Load

    Speed Limit

    RPM
    C C0
    d D C B Fw N N
    40 62 40 41 48 63,700 117,000 4000

    NA6908UU Needle roller bearings with machined rings made of bearing steel have a low sectional height and a high load carrying capacity. The NA6908UU bearings can be used with or without an inner ring. Needle roller bearings RNA6908UU without an inner ring will require the shaft to be hardened, ground and polished.
